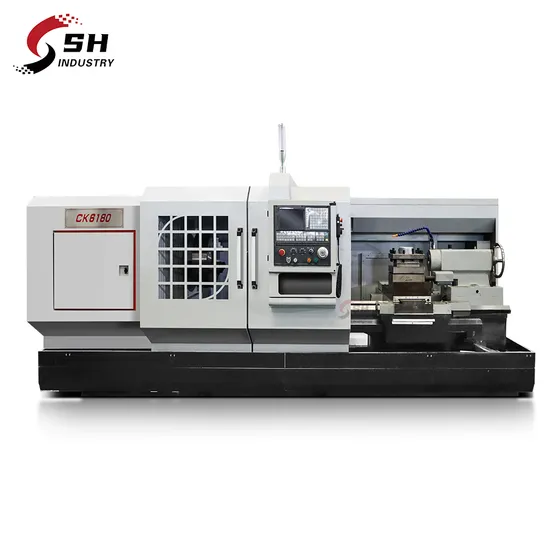

Heavy Duty High Precision CNC Lathe Machine Ck6180 Flat Bed Horizontal CNC Turning Center Price

Product Description

Heavy Duty High Precision CNC Lathe Machine CK6180 Flat Bed Horizontal CNC Turning Center Price
Product Description
CNC LATHE INTRODUCTION
The series CNC lathe is universal standard automatic machining equipment for metal processing, suitable to process shaft and plate workpiece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
FEATURES
One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Carriage and guide-way contact surface use Turcite B to maintain accuracy
Technical Specifications:

SPECIFICATIONS	Units	CK6163	CK6163	CK6180		CK6180
		Manual	HYD.	Manual		HYD.
Swing over bed	mm	630		800
Swing over cross slide	mm	350		520
Distance between centers	mm	1000/1500/2000/3000/4000/5000/6000		1000/1500/2000/3000/4000/5000/6000
Guideway width	mm	550		550
Max. load capacity	T	3		3
Spindle bore	mm	104		104
Spindle bore taper	-	Metric φ120/MT5		Metric φ120/MT5
Spindle nose type	-	C11		C11
Spindle speed steps	-	VF. 3 steps	HYD. 4 steps	VF. 3 steps	HYD. 4 steps
Spindle speed range	rpm	10-1000	17-1000	10-1000	17-1000
Chuck	mm	φ315 3-jaw manual		φ315 3-jaw manual
Turret/tool post	-	Electric 4 position		Electric 4 position
Tool size	mm	32 x 32		32×32
X axis travel	mm	320		420
Z axis travel	mm	850/1350/1850/2850/3850/4850/5850		850/1350/1850/2850/3850/4850/5850
X axis rapid traverse	mm/min	4000		4000
Z axis rapid traverse	mm/min	6000		6000
Tailstock quill diameter	mm	φ100		φ100
Tailstock quill taper	-	MT5		MT5
Tailstock quill travel	mm	250		250
Main spindle motor	kw	11		11
Coolant pump motor	kw	0.125		0.125
Weight for 1000	kg	3700		3900
Weight for 1500	kg	4100		4300
Weight for 2000	kg	4500		4700
Weight for 3000	kg	5300		5500
Weight for 4000	kg	6100		6300
Weight for 5000	kg	6900		7100
Weight for 6000	kg	7700		7900
Dimension for 1000	mm	3300x1750x1850		3300x1850 x1900
Dimension for 1500	mm	3800x1750x1850		3800x1850 x1900
Dimension for 2000	mm	4300x1750x1850		4300x1850 x1900
Dimension for 3000	mm	5300x1750x1850		5300x1850 x1900
Dimension for 4000	mm	6300x1750x1850		6300x1850 x1900
Dimension for 5000	mm	7300x1750x1850		7300x1850 x1900
Dimension for 6000	mm	8300x1750x1850		8300x1850 x1900

Detailed Photos

Company Profile
Certifications


FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
