300kg-400kg Capacity PC500 Plastic Waste Recycled Pet PP PE Oil/Milk/Drinking Bottles/Lumps Crusher/Crushing/Shredding/Grinding Machine/Equipment

Product Description

Product Description
SWP/PC Type Plastic Crusher is mainly used for breaking relatively long PVC PP PE HDPE PPR PET ABS PC special shaped material, such as plastic door & window, plastic pipe, sheet, bottles, films etc. There is no need to cut. Once continuous feeding can be conducted. Internal design of SWP Series Horizontal Plastic Breaking Machine is rather distinct. It is a new kind of breaking machine used for breaking plastic profiled material with large hardness and tenacity. It is improved and extended on the basis of SWP series two models. Wind motor is arranged for transport of broken material, start-up device is arranged. The operation and maintenance & repair is rather simple. It is an ideal model for breaking all sorts of pipe material and profiled material.
Features
1. Adopting deafener low in noise.
2. Adopting removed bits which can be separately removed and sharpened after getting blunt.
3. Suitable for smashing all kinds of soft hard and foamed plastics.
Quality Control
1 We have technical, engineer team design the sample machinery before enter into market.
2 Production QC team ensure the machine manufacturing quality.
3 We will running every machine after finished before shipment.
4 Optional choose by client running the machinery by material.

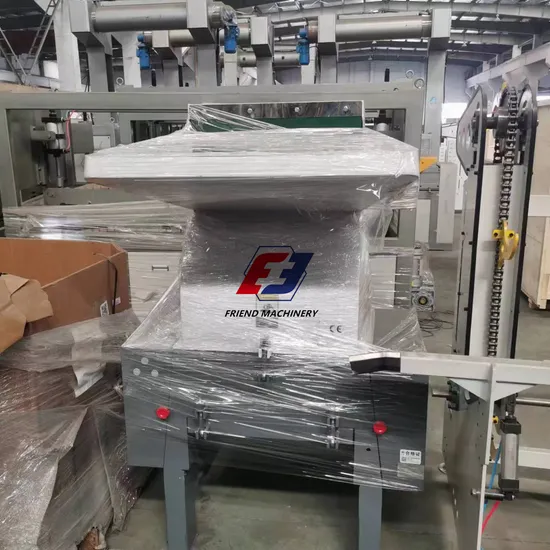

Detailed Photos
Product Parameters

Model	SWP150	SWP200	SWP210	SWP300	SWP320	SWP380	SWP400	SWP630
Diameter of turning knife(mm)	150	200	210	300	320	380	400	630
Number of turning knife	9	3	3	3	6/2 groups	12/4 groups	5	9/3
Turing speed of knife(r/min)	730	870	500	640	650	650	500	480
Number of fixed knife	2	2	2	3	2	8/4 groups	2	4/2
aperture of screen panel	φ8	φ8	φ8	φ12orφ14	φ8	φ10	φ10	φ10
Crushing capacity(kg/h)	60-200	50-110	80-120	50-250	250-350	100-400	350-450	700-850
power	5.5	4	4	37	11	27.5	13.2	44
Current source	380V50Hz
Size of feeding gate(mm)	150×200	240×350	250×230	260×1200	500×280	268×1120	375320	820610
weight(kg)		300	320	2000	1400	800	980	5000
Outline dimension(mm)	1200*820 *1160	1000*590 *1090	800*600 *1400	1550*1300 *1850	1613*1150 *1910	1800*1460 *1380	2500*1200 *2000	2500*1550 *2850

Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: If I need more information, how to contact you?
Send me your demands, we will send back detailed machine specifications with working video.
Q2: How to buy your machine?
We send detailed machine quotation to you, if you are satisfied, we will make Proforma invoice for you, payment terms: 30% deposit, after machine testing good, 70% before shipment.
Q3: What about warrenty?
In some countries, we have agent and one year warrenty.
Q4: How can I believe your factory and company?
You are welcomed to ask authority to visit our factory and machine, we are real factory.
Q5: Do you have other service?
We can send engineer to your factory to install the machine and offer training. Each year, if we have machines technical improvements, we will inform clients.
Q6:Where is your factory located?
Our factory is in Zhangjiagang City which is nearby shanghai port, about 2 hours car driving, if you want to visit our factory, we can pick you up from airport or train station.

---
