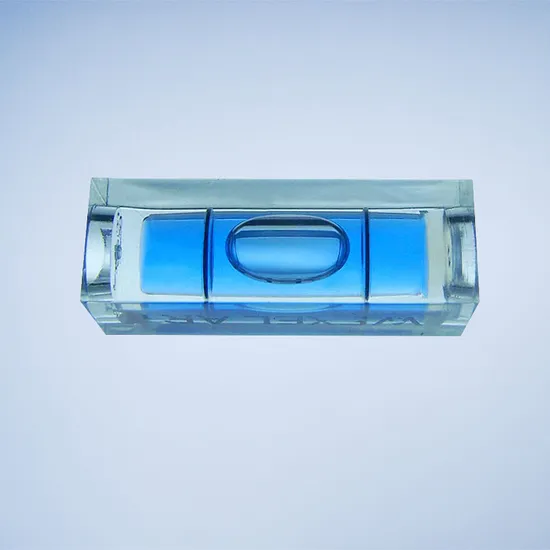

Blue Machined Block Bubble Level, Spirit Level Rb-Sq401515

Product Description

* Name, Block Bubble Level
* No.,RB-SQ401515
* Size,40MM in length,15MM in width,15MM in height.
* This vial is made of Acrylic
* It is machined by CNC lathe with accurate accuracy, the precision is 30'+/-6'. When you adjust the air bubble in the middle of two lines, and flip the bubble level, the air bubble will be still stay in the middle of two lines, the tolerance will be within 0.2MM.
* Could not saw the mark of machining from 25CM away.
* The air bubble could be aggregated in 1 second after collision
* The vial could bear 1J impact force.
* The vial will be like the original after being experimented under -32oC with 24h and 77oC with 24h
* We can do the vials according to your requirements(size,color,type,precision for plastic vial will be from 10'to3°,for glass vial could be 4", and could do the other requests also)

Square Block Level Size Specification
No.	Item No.	Length (MM)	Width(MM)	Height(MM)	Sensitivity	Color
1	RB-SQ291010	29	10	10	35'-40'	Customized
2	RB-SQ401515	40	15	15	30'+/-6'
3	RB-SC401515	40	15	15	30'+/-6'
4	RB-SQ401516	40	15	16	30'+/-6'
5	RB-SQ441515	44	15	15	30'+/-6'
6	RB-SQ521815	52	18	15	30'+/-6'
7	RB-SQ701516	70	15	16	30'+/-6'

---
