Single Arm Foundry Resin Sand Mixer, Leading Manufacturer for No-Bake Process

Product Description

Company Information:
QINGDO BESTECH MACHINERY CO.,LTD own the strong development real strength, the forerunner's production craft, perfect examination means, the management system of science. The conduct and actions casts the professional production factory house, technique, quantity and the automation level etc. of the machine profession to all be placed in the domestic to go together the advanced level of industry.

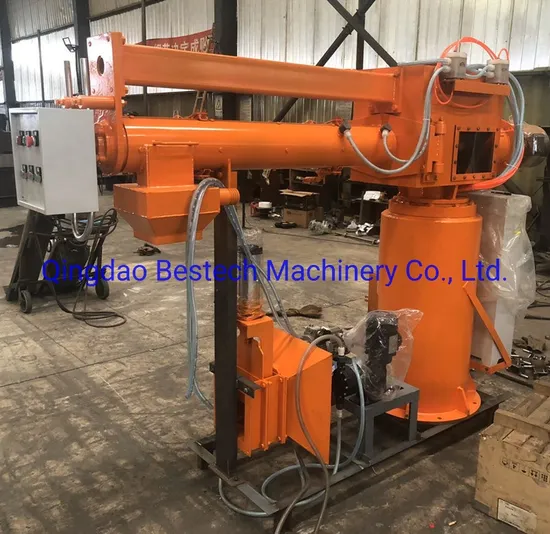

S24series single arm sand mixer
The mixing arm has a frame structure supporting two half shells, which form the mixing tube. These are split length-ways and are hinged at a single point behind the sand inlet. This opening arrangement gives easy access to the mixing shaft and blades for maintenance and cleaning. The mixing tube may be fitted with are movable wear lining (optional). It has a mixer shaft with removable/interchangeable forged steel blades with tungsten carbide plates on every wear face.

Model	S245	S2410	S2415	S2420
Productivity (t/h)	5	10	15	20
Diameter (mm)	Φ203	Φ219	Φ225	Φ250
Rotation rate (r/min)	960	970	720	730
Motor power (kw)	4	7.5	11	15
Gyration radius (mm)	R2000	R2000	R2000	R2000
Binder quantitative accuracy	<±2%

If you are any interested in our foundry sand mixer , Please contact us freely .
Warmly welcome to visit our factory! Our team waiting you for here!

---
