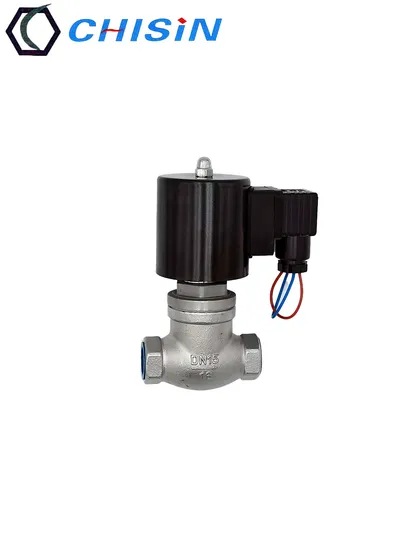

Zqdf Series - Steam Solenoid Valve - Threaded Connection - Stainless Steel - DN15-DN65- Voltage Optional - Customizable

Negotiable 10 Pieces (MOQ)

Basic Info.

Model NO.

ZQDF

Actuator

Electric

Connection Form

Thread

Type

Direct Acting

Material

Stainless Steel

Pressure

High Pressure

Valve Structure

Direct-Acting Piston Structure

Power Supply

AC220V or DC24V/According to Customer Requirements

Usage

Safety, Emptying, Drain, Temperature Control, Flow Control

Standard

GB/According to Customer Requirements

Application

Industrial Usage, Water Industrial Usage, Household Usage

Sealing

PTFE

Customizable

1. Waterproof 2. Explosion Proof 3. Vacuum Use

Transport Package

Based on Customer Needs

Specification

DN15-DN65

Trademark

ChiSin

Origin

China

HS Code

848120109

Production Capacity

2000pieces/Months

Product Description

ZQDF series steam solenoid valve - comes with a one-year warranty
Features: Steam available and can be started at zero pressure
Sealing: The valve adopts a piston type, usually sealed with PTFE, and sealed with nitrile rubber in a vacuum environment.
Optional: normally open, explosion-proof, waterproof, vacuum type
Media: liquid, gas, steam, oil
Working temperature: optional ≤ 180 ºC, optional ≤ 220 ºC,
Work pressure: 1.6MPA
Working pressure difference: 0-0.8MPA

Model	connection method	Length	High
ZQDF-15	G 1/2''	70	140
ZQDF-20	G 3/4''	80	145
ZQDF-25	G 1''	90	150
ZQDF-32	G 1 1/4''	110	200
ZQDF-40	G 1 1/2''	120	210
ZQDF-50	G 2''	130	220
ZQDF-65	G 2 1/2''	145	250
