| US$530.00 | 90 Pieces (MOQ) |

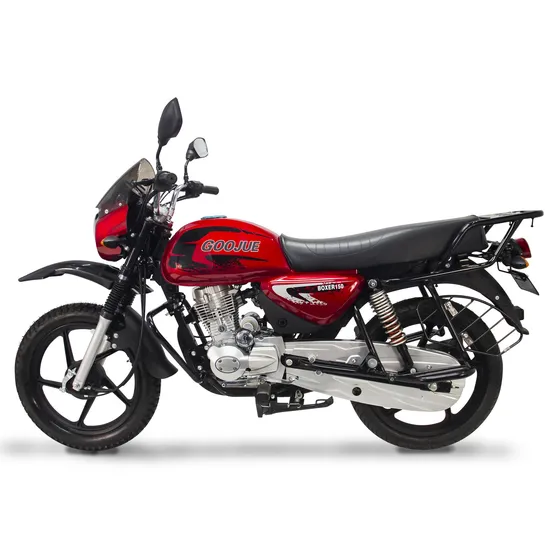

| Model:BOXER | ||
| Engine | ||
| Type | Air cooled, 4-stroke single cylinder | Air cooled, 4-stroke single cylinder CBF |
| Displacement | 149cc | 198cc |
| Max Power | 8.3Kw/8500(r/min) | 10.5KW |
| Max Torque | 10.5N.m/7500(r/min) | 15.5N.m |
| Max Speed | >=95km | >=110km |
| Compression Ratio | 8.8:1 | 9.1:1 |
| Starting | Electric and Kick-start | |
| Ignition | C.D.I. | |
| Fuel Tank Capacity | 14L | |
| Fuel Consumption | 2.3L/100km | 2.5L/100km |
| Front brake | Disc and Drum brake | |
| Rear brake | Drum brake | |
| Wheels and Tyres | ||
| Front | Aluminum wheel | |
| Rear | Aluminum wheel | |
| Tyre Size | ||
| Front | 2.75-17,Normal Tire | |
| Rear | 3.00-17,Normal Tire | |
| Transmission | ||
| drive | Chain drive | |
| Gear Box | 5 speed constant mesh | |
| Weights | ||
| Kerb Weight | 122Kg | 125Kg |
| Max Payload | 200kg | 250Kg |
| Dimensions | ||
| Length | 2000mm | |
| Width | 750mm | |
| Height | 1090mm | |
| Wheelbase | 1370mm | |
| Seat height | 750mm | |
| Ground Clearance | 140mm | |
| Packing | ||
| CKD 40HQ/20GP | 196/90PCS | |
| SKD 40HQ/20GP | 105/36PCS | |
