US$3,200.00-4,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Power
4kw AC Motor (Customizable 5kw Motor)
Voltage of Battery
48V.72V
Color
Can Be Customized Multiple
Endurance Mileage
80-120km
Any Power-Generating or Power-Driven Mac
4kw AC Motor (Customizable 5kw Motor)
Battery Type
Lead-Acid Maintenance-Free 12V100A
DC Changer
High-Power Non-Isolated DC-DC12V
Steering System
Bidirectional Gear Rack Steering System with Autom
Brake Assembly
Four-Wheel Hydraulic Brake, Four-Wheel Disc Brake
Front Suspension
Double Swing Arm and Independent Front Suspension
Transport Package
Steel Frame Fixed Wooden Box Covering
Specification
2950*1340*2000mm
Production Capacity
2000units/Month
Product Description

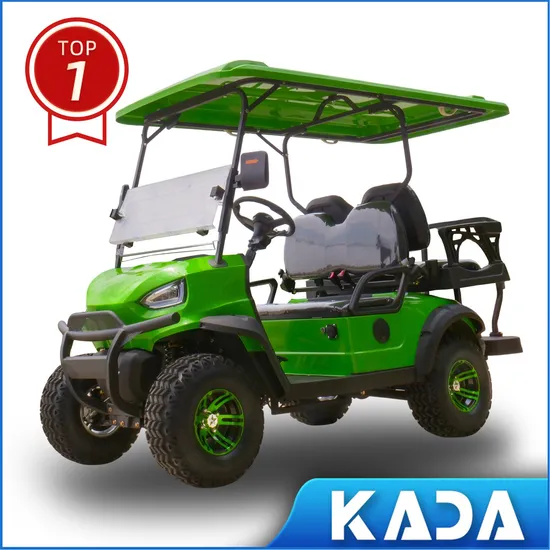

Annual Best Selling New Programmable 48/60/72V 6 Seats Sightseeing Shuttle Bus Hunting Vehicle Buggy Electric Golf Cart.
motorcycle type | | |
| New 2 + 2 (4 seats) | New 4 + 2 (6 seats) |
Overall dimensions:
length * width * height | 2950*1340*2000mm | 3500*1340*2000mm |
Packaging dimensions
(wooden box packaging) | 3000*1350*1250mm | 3700*1350*1250mm |
| running speed | 45km/h |
| maximum gradability | 30% |
| endurance mileage | 80-100Km |
| Rated manned | Four people | Six people |
| wheel base | 1708mm | 2400mm |
| Vehicle weight (kg) | 560 | 620 |
| any power-generating or power-driven machine | 4KW AC motor (customizable 5KW motor) |
| Vehicle voltage | 60V | 72V | 60V | 72V |
| Battery type | Lead-acid maintenance-free 12V100A | Lead-acid maintenance-free 12V100A |
| Battery quantity | 5 block | 6 block | 5 block | 6 block |
| charger | On-board intelligent charger, charging time <8 hours (discharge rate 80%) |
| controller | Inball Controller |
| DC changer | High-power non-isolated DC-DC12V |
| steering system | Bidirectional gear rack steering system with automatic clearance compensation function |
| brake assembly | Four-wheel hydraulic brake, four-wheel disc brake |
| Front suspension | Double swing arm and independent front suspension + spiral spring + cylinder hydraulic shock absorber |
| The rear suspension | Integral rear axle, speed ratio of 16:1, spiral spring damping + barrel hydraulic damping |
| tyre size | Full-terrain 23*10.5-12 12-inch aluminum wheel with a diameter of 580 mm. (Customizable 14-inch hub) |
| platfond | Frosted black square pipe frame + polypropylene injection molding large top |
| floor board | Anti-skid floor, high strength structure, corrosion resistance, aging resistance |
| body of car | Front cover, seat cylinder, body and rear tail cover for automobile injection molding: frosted black square pipe roof; |
| seat | Overall foam forming cushion: high-grade imported leather (optional) color
separation: inverted seat can be flipped, including storage box |
instrument desk | Injection molding instrument panel, electric lock switch, double-arm
combination switch, gear switch, water cup holder: USB data interface. The LCD electric vehicle combination instrument platform is an embedded
multimedia touch LCD screen. |
| rearview mirror | A manually adjustable, foldable outer rearview mirror |
Lights and signals | Light emitting diode front combination light (near light light, high beam light, turn signal light, daytime running light, position light light emitting diode rear tail light (brake light, position light, turn signal light): snail horn, reversing buzzer |
| front windshield | Acrylic Plexiglas (foldable) |
| Number of cabinets | 20 Cabinet | 10 | 8 |
| 40 Cabinet | 20 | 18 |
| |
Q1. If there is any technical help after we receive the carts?
A: Yes, we supply 24 hours online service for free.
Q2. Do you have CE documents and other documents forcustoms clearance?
A: Yes, we have CE, after shipment, we will send you the Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q3. lf l want to visit your factory, how can l contact you?
A: Just send us your online contact number, we will discuss and make adetailed arrangement according to your time.
Q4. lf there are some problems with some parts during the warranty period, will your company repair or replace me?
A: Yes, we will send new carts parts to you within warranty time for free. Not including the consumable parts and Man-made damage.
Q5. How long can the carts be delivered?
A: Common cartss can be delivered within 3~10 working days.
>>
