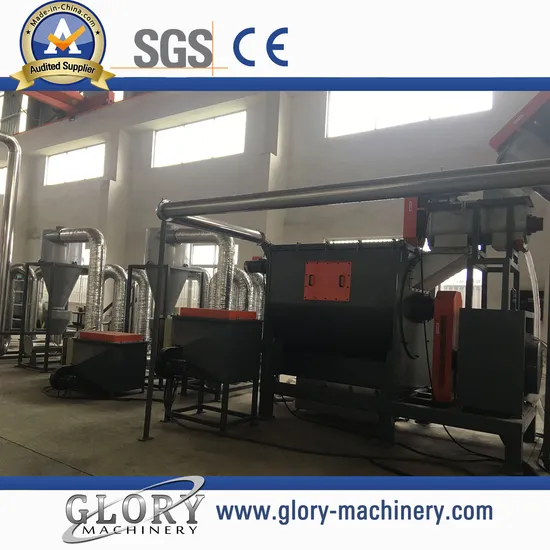

Label Remover for Plastic Washing Recycling Production Line

Product Description

Description:Label Remover for Plastic Washing Recycling Production Line
It designs stable speed, don't need to convert speed, easily operating, you just feed material into material. There are leaves on the axle, leaves has lots of functional screw for removing label, while running of screw, the label from bottle will be scratched down, and rinsing out of net by water, and washing the bottles. The removing rate is decided by the original status of bottles, compressed bottle is about 60-80%, for uncompressed bottle is about 80-90%, the wasting rate is about 5%.
1) This PET label remover used to pre-treatment of the bottle (include pet bottle, pe bottle )before washing or crushing. The label on the bottle can be removed up to 95% (include paper label), and the cover of the bottle will be removed up to 70%.
2) The label will be peel off by self-friction.
3) The bottles are feed from the top of the machine, and discharge from the bottom.
4) This machine is used for new way of washing line. Use this machine can have high purity PET/PP flakes.
5) The capacity for this machine is from 500-2000kg/h.
Applications:
TPJ series belt remover is widely applied in sorts of plastic bottle belt removing, the water consumption per hour is 20 tons, and the water can be circulated.
Specifications:

Model	CB-1	CB-2	CB-3	CB-4
Power(kw)	7.5	11	22	22
Fan power(kw)	3	5.5	7.5	----
Width(mm)	2500	3000	3250	1100
Length(mm)	4500	5500	6500	3480
Height(mm)	3500	3950	3950	3180
Max. Capacity(kg/h)	500	1000	1500	2000
Type	Without water	Without water	Without water	With water
