Sanshine Automatic Fish String Rewinding Robot (SS-RW02)

Product Description

Detailed Photos

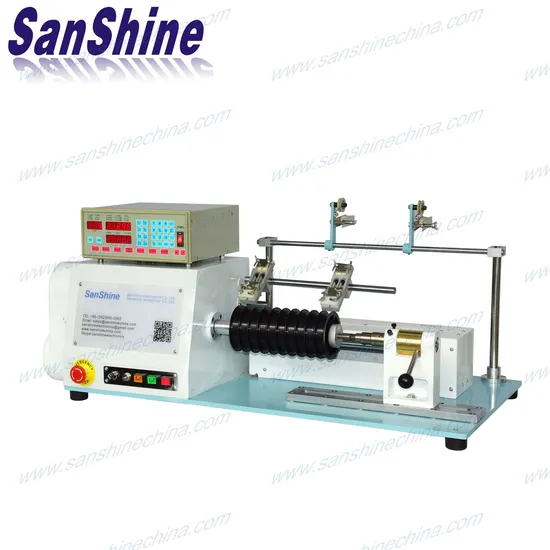

Pictures of Sanshine Automatic fish string rewinding robot (SS-RW02):
Product Description
The Sanshine Automatic fish string rewinding robot (SS-RW02) is one High-Torsion digital coil rewinding machine. It is digital Programmable coil rewinding machine with 1/2HP DC motor. The Maximum wire diameter can reach 3.0mm. It's the best choice for rewinding fish string, rewinding fish wire, rewinding fish thread, rewinding copper wire, rewinding wires, rewinding plastic string, rewinding textile thread, rewinding sewing thread, etc. .This machine can be customized according to coil size by requested.

Feature of Sanshine Automatic fish string rewinding robot (SS-RW02) : 1. Microprocessor design, easy for program-setting.
2. Stepper motor driven by constant-current power supply, high spreading Speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.
4. Wire passing through ceramic rollers prevent enamel from high temperature.
5. Two wire spreading heads with winding nozzle make sure the spreading wire precise and be high efficiency.
6. Foot-switch connection for better efficiency.
7. Winding parameters and options can be set.

Specification of Sanshine Automatic fish string rewinding robot (SS-RW02):

Model	SS-RW02
Spindle Number	1
Wire diameter	0.5~3.0mm
Spread pitch	0~9.999mm
Spread width(traverse)	350mm
Finished coil diameter	Finished coil diameter
Winding motor	500W DC Motor
Spread motor	4-Phase Stepper Motor
Max. speed	1600 / 400rpm
Memory	999 Steps
Power source	AC220V/110V + 10%, 50/60 Hz
Dimension(cm)	70x52x60
Net weight	42kgs
