3 Roller Hydraulic Plate Rolling Machine Roller Bending Machine

Product Description

Product Description
W11S Series Upper roller universal hydraulic plate rolling machine
Performance: Superior product precision Unique bending process, high precision end-pre-bending, continuous bending without back angle, digital control of the ing process. Man-machine dialogue control interface, intelligent and efficient operation. Physical bending process software, man-machine dialogue window. Single operation, high efficient, safe, and convenient. Abundant curved shapes, such as O,U,R shape. Various choices of machine type. There are economic CNC machines and TWL CNC machines for options. W11SNC Small Upper roller universal hydraulic rolling machine

Model	Max. Rolling thickness(mm)	Max. Pre-bending thickness(mm)	Max. Width of the sheet(mm)	The diameter of the upper roller(mm)	Main motor power(KW)
W11S-12*2000	12	10	2000	250	5.5
W11S-16*2000	16	12	2000	260	7.5
W11S-16*2500	16	12	2500	300	15
W11SNC-18*3000	18	14	3000	350	15
W11S-20*3000	20	16	3000	375	22
W11S-25*2500	25	20	2500	380	22
W11S-30*2500	30	25	2500	410	30
W11S-30*3000	30	25	3000	450	30
W11S-40*2500	40	35	2500	500	45
W11S-40*3000	40	35	3000	540	45

Description and specification given in this sheet are subject to modification without notice.
W11SNC Medium Upper roller universal hydraulic rolling machine

Model	Max. Rolling thickness(mm)	Max. Pre-bending thickness(mm)	Max. Width of the sheet(mm)	The diameter of the upper roller(mm)	Main motor power(KW)
W11S-40*4000	40	32	4000	610	55
W11S-45*3000	45	40	3000	560	55
W11S-45*4000	45	40	4000	630	75
W11S-50*4000	50	45	4000	680	75
W11S-55*3000	55	45	3000	600	75
W11S-55*4000	55	50	4000	710	90
W11S-60*3000	60	50	3000	650	75
W11S-60*4000	60	55	4000	750	90
W11S-65*4000	65	60	4000	780	90
W11S-70*3000	70	60	3000	700	75
W11S-70*4000	70	65	4000	810	90
W11S-75*3000	75	65	3000	720	90
W11S-80*3000	80	70	3000	770	90
W11S-80*4000	80	75	4000	860	90
W11S-90*3000	90	80	3000	800	90
W11S-100*3000	100	90	3000	860	90

W11SNC Large Upper roller universal hydraulic rolling machine

Model	Max. Rolling thickness(mm)	Max. Pre-bending thickness(mm)	Max. Width of the sheet(mm)	The diameter of the upper roller(mm)	Main motor power(KW)
W11S-100*4000	100	85	4000	940	110
W11S-110*4000	110	95	4000	990	110
W11S-120*3000	120	100	3000	900	90
W11S-130*3000	130	110	3000	960	2*75
W11S-150*3000	150	120	3000	970	2*75
W11S-160*4000	160	130	4000	1160	2*90

The main structure
The main structure is composed of upper roller , down rollers and level motion device support rolls device , tuning device , balance device, lubricate device , left and right work frame and bottom plate.
The upper roller
upper rolls device composed of main cylinder, upper bearing pedestal, upper rolls, double self-aligning bearing .two cylinders provide the pressure for upper roll bending , main cylinder working pressure is 20 Mpa ,max pressure of upper roll multiply 0.8 times to compensate for pre-bending. Upper roll two ends fit with double self-aligning bearing to reduce the friction and motor power. The material of upper roll is 42CrMo , heat treatment is HB220-280.`
Down roll and level motion device.
The material of down roll is 45# or 42Crmo , heat treatment is HB220-280.. it composed of down of roll, down roll bearing pedestal, down roll input gear, down roll, glide bearing. Down bearing adopt SF-2 oil glide bearing.
Level motion motor supply the power, through the strap drive to CWU worm wheel and pole speed reducer. Upper roll level motion drove by worm wheel and pole to finish bending in dissymmetry form.
Support device
Composed of sloping block device, support device, support rolls bearing pedestal, support lifting device, support rolls can adjust up and down. The adjustment depend on plate speciation. The material of support is 45# , heat treatment is HB220-250, it made up in helix sharp to protect the surface.
Main drive device
It composed of motor, hard gear speed reducer, output gear, main motor can tuning in two direction and provide bending pitch of strand.
Overturn device
Composed of ram, bearing, tuning cylinder
Balance device
Composed of balance compact, screw
Lubricate device
composed of lubricate pipe and lubricate pipe attachment, adopted GB7323-1994 NO 2 lithium grease.
Hydraulic system
Composed of Y series motor, gear pump , valves , oil tank, pipe and so on.
Max pressure is 20 Mpa , testing pressure is 24 Mpa , pressure adjusted by overflow valve, system working pressure 0-19 MPa , normal pressure is 15Mpa . the valves adopted from Taiwan.
Electricity system
Composed of electrical box, operation table , manual button . the power is 380V50HZ adopted PLC control system code with longevity easily operate. Whole bending process can read from the indicator setting on the control box.
Digital display system
This machine adopts two sets of digital instrument and displacement sensor formed a reliable digital display and control system.

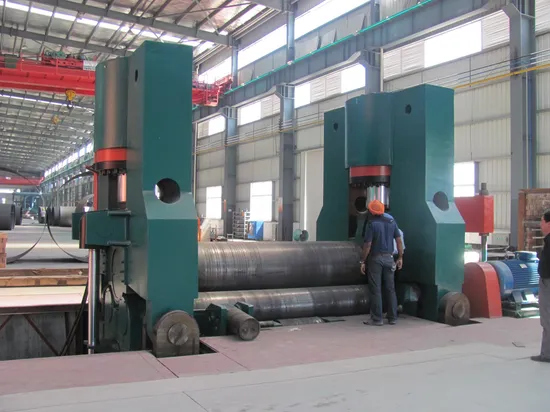

View of machine

---
