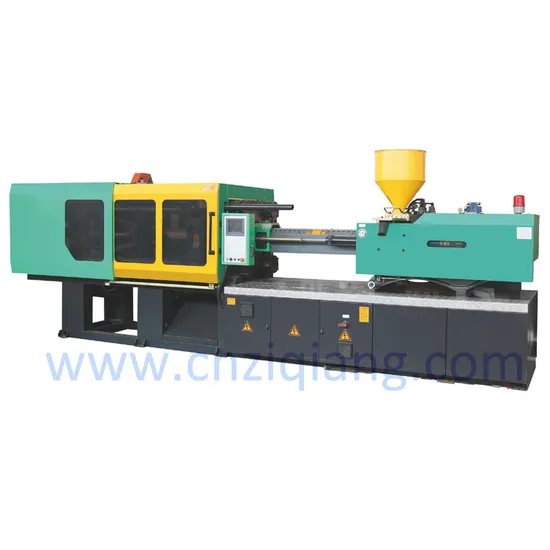

Pet Plastic Bottle Preform Making Machine (ZQ168-M6)

Product Description

PET Plastic Bottle Preform Making Machine
Model: ZQ88-M6, ZQ128-M6, ZQ168-M6, ZQ218-M6,
ZQ268-M6, ZQ320-M6, ZQ400-M6, ZQ500-M6, ZQ680-M6
Clamping Force: 880KN---6800KN
Shot Weight: 1---4Kg
Shot Volume: 129cm3---3808cm3
The technical advantages of injection machine.
Water Saving: No overflowing heating, low oil temperature saves cooling water,
And increases life of sealing elements.
Power Saving: Save Power30%-60%.
High Speed: Increase 20% performance capacity by using variable displacement pump.
Oil Saving: Using high performance filter device to increase life hydraulic oil.
PET Plastic Bottle Preform Making Machine,equipment information.

INJECTION MOLDING MACHINE	ZQ88-M6			ZQ128-M6			ZQ168-M6
International size rating	275/88			416/128			619/168
INJECTION	A	B	C	A	B	C	A	B	C
Shot volume cm3	129	163	201	215	263	316	291	349	463
Shot weight g	121	153	189	196	239	287	273	328	435
(PS) oz	4.2	5.4	6.6	6.9	8.4	10	9.6	12	15
Screw diameter mm	32	36	40	38	42	46	42	46	53
Injection pressure Mpa	214	169	137	193	158	132	190	169	120
Screw L: Dratio -----	23:1	20:1	18:1	22:1	20:1	18:1	23:1	20:1	18:1
Screw stroke mm	160			190			200
Screw speed (stepless) r/min	0-215			0-220			0-234
CLAMPING SYSTEM	ZQ88-M6			ZQ128-M6			ZQ168-M6
Clamping force KN	880			1280			1680
Opening stroke mm	320			380			430
Platen size mm×mm	550×550			620×620			700×700
Space between tie bars mm×mm	360×360			410×410			460×460
Max.daylight mm	680			810			930
Mold thickness (Min-Max) mm	150-360			150-430			180-500
Hydraulic ejection stroke mm	100			125			140
Hydraulic ejection force KN	31			42			50
POWER UNIT	ZQ88-M6			ZQ128-M6			ZQ168-M6
Hydraulic system pressure Mpa	16			17.5			17.5
Pump motor KW	7.5			11			15
Heating capticy KW	6.5			8.9			9.8
Number of temp control zones	3+(nozzle)			3+(nozzle)			3+(nozzle)
GENERAL	ZQ88-M6			ZQ128-M6			ZQ168-M6
Dry-cycle time Sec	1.1			1.3			1.8
Oil tank capacity L	200			220			300
Machine dimensions(LxWxH) M x M x M	4.42x1.07x1.72			4.86x1.09x1.75			5.04x1.17x1.97
Machine weight Kg	3500			4000			5000

Note: The specifications are subject to change without notice for the further improvement.

---
