Bathroom Hand Tissue Jumbo Roll Rewinding Machine

Product Description

Product Description

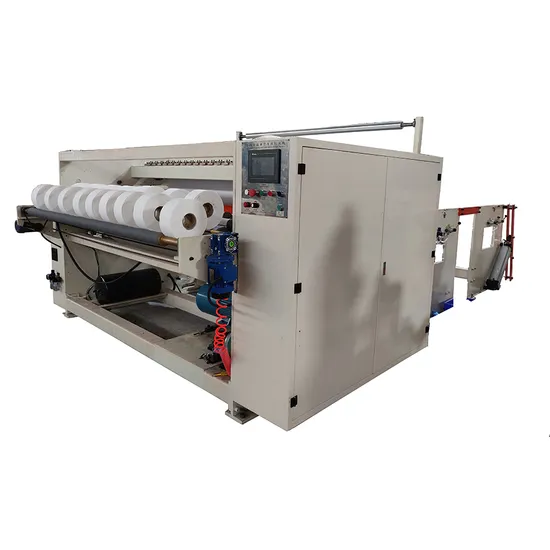

Bathroom hand tissue Jumbo roll rewinding machine
Machine video:
https://youtu.be/OF2AIVkWklA?si=rWgXK5KVgopO7Ffq
CIL-WW-D this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 150-220m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
This equipment can process raw paper of 1.2m -2.75m in width. There are two production model, machine with cutting function, can produce both ordinary toilet paper and small bobbin. High production efficiency .This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, cutting unit,rolling unit, electricity control and trimming spray system. The production process is : unreeling -→ embossing -→perforating-→cutting -→furl-→trimming spray
Main technical parameter:

Model	1092D	1575D	2000D	2200D	2400D	2600D
Width of raw material	1200	1800	2000	2200	2400	2600
Dia. of finished product	¢90-300mm(the tension is adjustable)
Dia. of finished paper core	Toilet paper:¢30-50,small bobbin¢76(other specification please specify0
Dia.of raw material	1200mm(can accept customers' requirement)
Dia of core of raw material	¢76.2mm
Perforation distance	4 knives 90-125mm (other specifications, please point )
Reeling speed	150-200m/min
Slitting knife number	19 pcs(1575 for example)
Parameter setting	Touch screen man-computer interface operation system
PLC	PLC
Raw material holder	2 layers(3layer, please order)
Pneumatic system	Pressure 5kg/cm2pa(prepared by customers)
Power	5.5-15kw
Overall Dimension (LXWXH)	6100X2650X1800-6100X4050X1800mm
Weight	3-5T
Embossment	Single embossment, edge embossment and steel to steel embossing(depend on selection)
Embossment bottom roller	Felt roller, wool roller and rubber roller (depend on selection)

Product Show

Company Profile
Certifications

Packaging & Shipping

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time? A: Generally it is 5-90 days if the goods are in stock. or it is 60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
