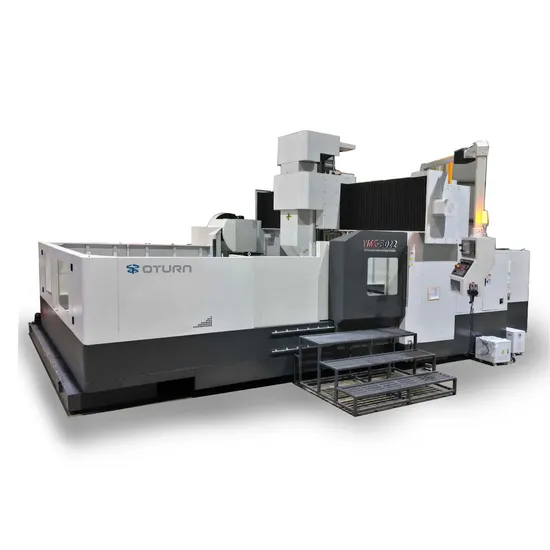

High Quality CNC Gantry Milling Machining Center with OEM Service

Product Description

Product Description
High rigidity and long-term accuracy retention
The main components of the machine tool, including the base, workbench, column, spindle box, and saddle, are meticulously analyzed using advanced FEA finite element analysis. This ensures optimal design optimization, a lightweight mechanism, and superior rigidity. The minimized distance between the spindle center and the guide rail surface, coupled with reduced flipping torque, significantly enhances processing stability. Crafted with resin sand molding and high-strength, high-quality cast iron, the machine undergoes a thorough heat treatment process to eliminate residual stress. Precise manual scraping of contact surfaces guarantees the highest structural rigidity for the entire machine. Our comprehensive product line boasts a wide range of specifications, complemented by a highly flexible automated exchange head library and a versatile vertical and horizontal tool changing system, delivering automated, efficient, and highly productive performance. The modular spindle design offers varied cutting characteristics to meet diverse machining needs. The Y-axis features an ultra-high rigidity roller-type linear slide rail, blending the heavy cutting rigidity of hard rails with the swift movement and low wear of linear slides, thus significantly enhancing both rigidity and control.
The three-axis system is equipped with internationally renowned brand roller guide rails, providing exceptional rigidity and outstanding dynamic accuracy. The transmission system employs large-diameter grinding ball screws from Taiwan, ensuring a compact structure, smooth movement, low thermal elongation, and heightened accuracy. The screw support forms a stable, high-rigidity mechanical transmission system. The high-precision spindle offers constant and reliable lubrication for spindle bearings, while the standard spindle oil cooling system maintains the spindle in a stable working condition for extended periods.
Product Parameters

DESCRIPITION	UNIT	YMC-3022
Travel X/Y/Z	mm	3000/2200/1000(1200)
Table Size	mm	3200×2000
Max.Table Load	kg	10000
Distance from Spindle Nose to Table	mm	200-1200
Distance between Column	mm	2200
Spindle Tapper		BT50/φ190
Spindle RPM		6000
Spindle P.R	kw	22/26
G00 Feed Rate X/Y/Z	mm/min	10000/15000/10000
G01 Feed Rate	mm/min	1-8000
Machine Weight	kg	30000
Collant Tank Capicity	liter	500
Lubrication Tank	liter	4
Power Capicity	kVA	35
Air Pressure Request	kg/cm²	5-8
ATC Type
ATC Tapper		BT50
ATC Capicity		24/32(40)
Max.Tool dia./length	mm	φ125/400
Max.Tool Weight	kg	18
Machine size	mm	8400*3800*3800
Positioning accuracy	mm	0.008/300
Repeatability	mm	0.005/300
Min. tool change time	s	2.9
