Almond Sesame Walnut Pumpkin Coffee Hydraulic Mini Oil Press Machine

Product Description

Almond sesame walnut pumpkin coffee Hydraulic mini oil press machine Product Description

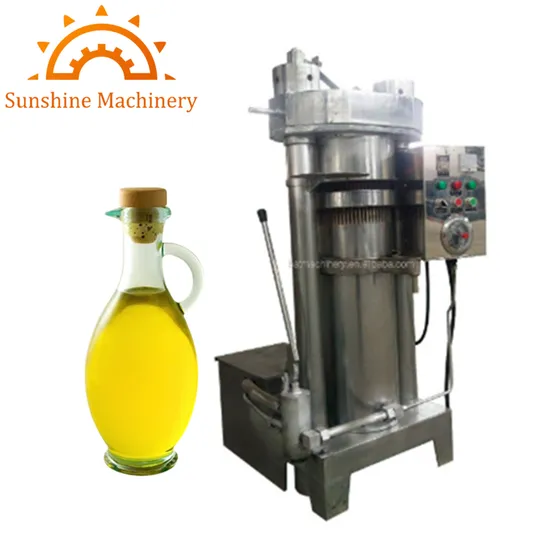

The main parts of the oil press are piston, hydraulic cylinders, columns, beams on activities, base, oil pump, cylinder, electric lap and automatic temperature control devices. All materials are made of high quality metal material, thereby improving the performance of the machine, to ensure that the service life of components.
Function:
Suitable seeds for hydraulic oil press
Crushing peanuts,sesame, pumpkin seeds, linseed, mountain seed, cocoa bean, coffee bean, pepper seeds, walnuts, tea seed, castor, camellia, pumpkin seeds, nuts, olive, black seed, walnut, almond, animal fat, and other oil crops.
Technical parameters

Model	QYZ-500	QYZ-410	QYZ-230
Working pressure	40MPa	45MPa	55MPa
Pushing force of working	300t	120t	190t
Inner diameter of pressing barrel	500mm	410mm	230mm
Working stroke of piston	700mm	500mm	300mm
Capacity of pressing barrel	200kg	80kg	8kg
Handling capacity	200kg/h	80kg/h	45kg/h
Main motor	4kw	1.5kw	1.5kw
Motor of heating	4kw	4kw	2kw
Weight	2800kg	1500kg	850kg

The hydraulic oil press has a top plunger main components, hydraulic cylinders, columns, activity on the base, table, barrel, heating ring, fixed sets, fuel tank and other components. FAQ
FAQ
1, Which kinds of seeds your machine can press?
It can press peanuts, soybeans, rapeseed, sesame, sunflower, linseed, mountain seed, cottonseed, pepper seeds, walnuts, tea seed, castor, camellia, pumpkin seeds, nuts, olive, black seed, almond and other oil crops.
2, What is the power?
The motor is 1.5 kw, good motor.
3, What is the production time?

The machines are in stock, we just need 2 days to pack the machines and send them to the port.
4. Can you provide us with operation video and English manual?
Of course, we can provide you video and manual. We can also send technician for your factory to instruct if you need.
5, What other machines we need after this machine if we want to pack the oil into bottles?
The oil is better if you get another equipment like low temperature filter process equipment. After that, you fill the oil into bottles and cap them. Packaging & Shipping
Wooden case package.
Detailed Photos
Capacity

Oil seeds	Time/Batch	Capacity/Batch	Capacity/10hours	Oil yielding rate
Sesame	5-8minutes	6-9Kg	360-520Kg	42%-52%
Camellia	8-12minutes	6-9Kg	260-320Kg	25%-35%
Walnut	8-12minutes	6-9Kg	260-320Kg	50%-60%
Pine nuts	8-12minutes	6-8Kg	310-630Kg	45%-60%

---
