US$22,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Automatic Grade
Semiautomatic
Machine Type
CNC Milling Machine
X,Y,Z Motor Type
Servo Motor
Power Supply
Three Phase 380V/50Hz
Transport Package
Wooden Case
Production Capacity
25 Sets/Month
Product Description
The currency exchange rate fluctuates greatly,
please consult customer service for the best price.

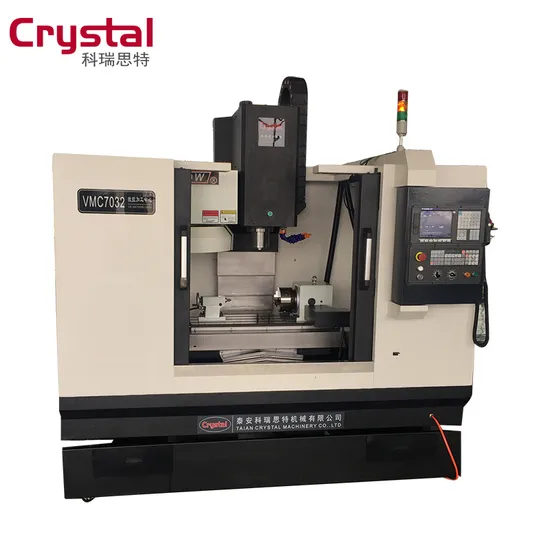

VMC7032 Vertical Machining Center Features:
1.Taiwan BT40 Spindle
2.Taiwan ball screw and locking nut
3.Umbrella type tool Magazine, 12 tools
4.Fully-guarded type machine
VMC7032 Vertical Machining Center Specifications:
Specifications
| Unit
| VMC7032
|
Table Size (L*W)
| mm
| 800×320
|
Travel of x,y,z axis
| mm
| 610/320/400
|
Max, table load
| kg
| 400
|
T-slot Size
| mm
| 3-14-100
|
Center distance
| mm
| 100
|
Spindle taper
| --
| BT40
|
Spindle center to Column guide distance
| mm
| 376
|
Spindle end face to table distance
| mm
| 130-530
|
Max speed
| rpm
| 8000
|
Spindle motor power
| KW
| 3.7/5.5
|
Spindle drive
| --
| Belt transmission
|
Positioning accuracy
| mm
| 0.015
|
Repeat Positioning accuracy
| mm
| 0.0075
|
Rapid feed of X/Y/Z
| mm/min
| 1000
|
Cutting feed of X/Y/Z
| mm/min
| 6000
|
Tool Magazine Capacity
| tools
| 12
|
Max. Tool size
| mm
| 100
|
Max. Tool weight
| kg
| 8
|
Machine Weight
| Kg
| 3000
|
Dimension
| mm
| 2280*1760*2200
|
Power
| --
| 3 phase 380V,
|
VMC7032 Optional Configurations:
1. System: KND2000M, FANUC, Siemens etc.
2. Spindle speed: 10000rpm
3. Fourth axis with 125°dividing head
4. Fifth axis
5. 16 pieces arm type ATC
>>
