Plastic PVC EVA HDPE LLDPE Geomembrane Welding Machine

Product Description

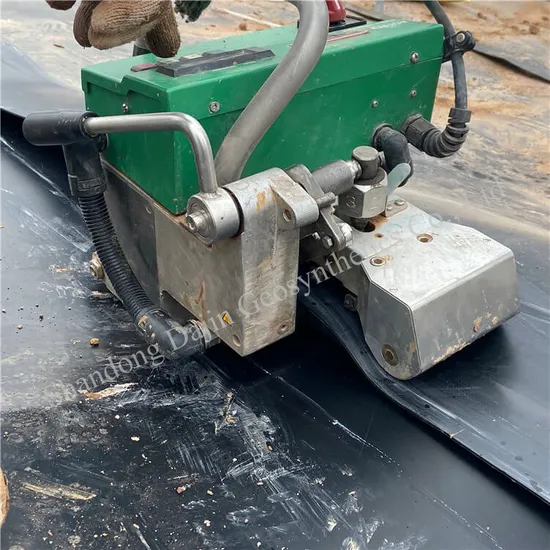

Plastic PVC EVA HDPE LLDPE Geomembrane welding machine
Geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness
and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and
low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC
servo motor, with great output torque and the operating is stable. It can maintain a constant speed on the condition of
creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite
of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating, with high welding speed and good
work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of
construction and so on
1. Technical parameters
Voltage (V): 220V
Frequency (Hz): 50Hz
Power (P): 800W
Welding speed (V): 0.8-6m/min
Heating temperature (T): 0-450ºC
Thickness of material to be welded: 0.2mm-2.0mm
Overlap width: 100mm
Welding width: 12.5mm×2, interior cavity 12mm
Seam strength: ≥85% base material (tensile resistant in shear direction), complete machine
Dimensions: L32 x W15cm x H22cm
Net Weight: 4.8kg
Gross Weight: 8.5kg
Insulation class: class II
5.Company introduction
Shandong Dajin Geosynthetics Co.,LTD is a comprehensive geosynthetic service provider as well as solution provider
integrating Engineering design, manufacturing, installation, guarantee in Seepage control industry.
The products provided by Dajin include geotextile, geomembrane, composite geomembrane warp-knitted geogrid, glass
fiber geogrid, plastic geogrid, steel-plastic geogrid, mining geogrid, high-strength mining polyester fiber mesh, geocell and
other geosynthetics.
Our goal is to become a world-class company dedicated to providing our customers with comprehensive, reliable and
high-quality services and solutions. Meeting the needs of people to increase their quality of life, promoting the smart use of
the planet's resources.

Why choose us?
We are manufacturer of plastic welders for more than 10 years with technicians team and after sales service.
2.How to guarrantee the quality?
Warranty is 1 year,if there is any quality problems ,we accept return or give spare parts for free.
3.How to solve if it is necessary to repair?
Our technicians will check problems that you pass to,and offer solving resolutions in short time.
4.Delivery?
1-5pcs is always on stock,we deliver in 3days after payment.
5.Customized products accepted?
Yes ,we make OEM products with labels and colors ,also distributors all over the world wanted.

---
