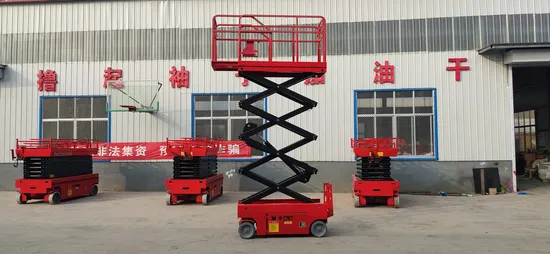

Small Mini Self Propelled Electric Hydraulic Scissors Lift Platform

US$5,690.00
1-9 Pieces
US$5,459.00
10-99 Pieces
US$3,999.00
100+ Pieces

Basic Info.

Model NO.
HTLP0.3-6
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Product Name
Lifting Platform
Keywords
Hydraulic Scissor Lift
Safe Working Load
320kg
Safe Working Load of Extension
113kg
Maxdmum Working Height
8m
Maximum Platfomm Height
6m
Overall Length
2600mm
Overal Width
1170mm
Overall Height (Fence Not Folded)
2280mm
Overall Height (Fence Folding)
1580mm
Working Platfom Size (Length X Width)
2400mm*1170mm
Transport Package
Wooden Package
Specification
2300
Trademark
Hightop
Origin
Shandong
HS Code
8428909090
Production Capacity
5000PCS/Year

Packaging & Delivery

Package Size
253.00cm * 122.00cm * 160.00cm
Package Gross Weight
2100.000kg

Product Description

Product Description
Product Parameters
Model HTLP0.3-6
Safe working load 320kg
Safe working load of extension 113kg
Maximum number of 2
Maxdmum working height 8m
Maximum platfomm height 6m
overall length 2600mm
overal width 1170mm
Overall height (fence not folded) 2280mm
Overall height (fence folding) 1580mm
Working platfom size (length x width) 2400mm*1170mm
Platfom extension size 0.7m
Minimum ground clearance (retracted) 0.1m
Minimum ground clearance (lifting) 0.019m
Wheelbase 1.89m
Minimum tuming radius (inner wheel) 0
Minimum tuming radilus (outer wheel) 2.2m
Lifting motor/ drive motor 24v/4.0kw
Machine ground speed (stowed) 3.5km/h
Machine travel speed (lifting state) 0.8km/h
Up/down speed 80/90 sec
Battery 6V/230Ah
Charger 24v/25A
Ciimb Capabilty 25%
Maximum allowable working angle(indoor / outdoor) 2%/3%
Weight of whole machine 2200kg

Packaging & Shipping
Company Profile
Shandong Hightop Group is a large-scale engineering construction machinery and equipment manufacturing group integrating scientific research, production and service. Its headquarter is located in Jining City, Shandong Province, covering an area of about 133,000 sq meters and a total of more than 300 employees.Hightop group is "Specialization, Refinement, Distinctive, Novelty" honorary enterprises of Jining city, and has introduced as a key project enterprise by goverment of The Economic and Technological Development administrative district.The Hightop Group manufactures and sells mini excavators, skid steer loaders, lawn mowers, sprayers,lift platform and other products. Hightop Brand excavator is No 1 of market share at near 5 years in mini excavator exporting market. Hightop conducts business in Europe, North America, South America, Southeast Asia and other area of the world. Until now, Hightop brand product have been exported to more than 177counties and regions.At the same time, Hightop has 10 overseas warehouse distribution bases in the world, including 2 in the United States, 1 in Germany, 1 in the United Kingdom, 2 in Spain, 2 in Poland, 1 in Russia, and 1 in Saudi Arabia. Quality is the life of Hightop Group. Technological innovation is Hightop's vitality, excellence is the artisan spirit of Hightop to abide. Until now, Hightop group has obtained 28 national patents, 21 trademarks and 3 copyrights.Hightop has got ISO 9001 international quality system certification, European Union CE certification, SGS certification, Germany TUV and France BV to meet the international different market demand. We believe the science and technology always change the world. In the future, Shandong Hightop Group will strive to build an international first-class brand of excavators and first-class enterprise, to create contribution to society, to create value to customers, and to make happiness to the employees.
