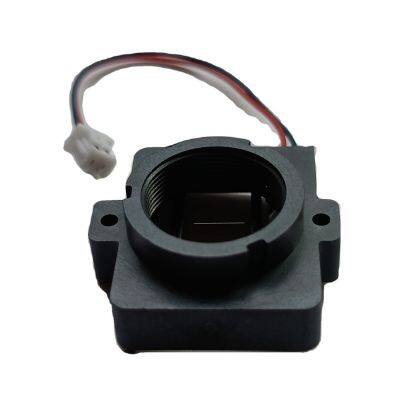

C Mount M12XP0.5 Pitch 20mm Day-Night IR-Cut Filter Switch

Product Details

Product Description

Product Description

Technical Parameter of IR-CUT Switch
NO.	Model No.	Dimensions (mm)	Openning size(mm)	Filter size (mm)	Filter thickness (mm)	Resistance (Ω)	Driving Voltage(V DC)	Current (mA)	Durability (CS Min)
1	01-001-009	42.26x20x15.2	18.0x18.0	21x19	0.50	/	3.5~4.5	230 Max	100,000
2	01-001-012	35.17x22.5x13.8	8x7	9x8.7	0.30	37±10	4.5~5.0	/	100,000
3	01-001-014	25.55x22.82x11.2	Φ6.6	7x0.65	0.21	50±10	3.8~5.0	70~90	100,000
4	01-001-015	48x33x17.6	16x16	16x16	0.30	/	4.5~5.0	300 Max	500,000
5	03-001-001	26.15x24.78x9.2	7x6	7x6	0.21	23±5	3.5~5.0	/	50,000
6	03-001-002	27x24.78x11.2	7x6	7x6	0.21/0.30	23±5	3.5~5.0	/	50,000
7	03-001-003	25.6x24.8x12.3	Φ15.2	6.93x6.43	0.21	45±8	3.0~12	/	200,000
8	03-001-004	21.2x20x8.2		6.6x5.5	0.21	/	2.5~5.0	60mA

---
