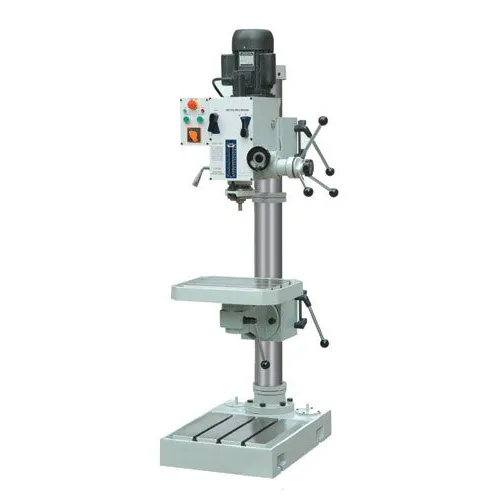

Portable High Speed Universal Drilling Milling Machine (KYZ40/KYZ45)

Negotiable 3 Sets (MOQ)

Basic Info.

Model NO.
KYZ40/KYZ45
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Color
Red
Drilling Capacity
40mm/45mm
Spindle Travel
130mm
Spindle Taper
M. T. 4 or R8
Available Size of Table
380*306mm
Max. Travel of Headstock
250mm
Table Leaned
45degree
Overall Height
1680mm
Packing Size
800X650X1830mm
Transport Package
Wooden Case
Specification
CE
Trademark
KY
Origin
China
Production Capacity
200 Piece/Month

Product Description

Bench lathe Machine Description
MODEL
 KYZ40
 KYZ45

Drilling capacity		 40mm 45mm

Distance from spindle nose to table		 725mm 725mm

Min. Distance from spindle axis to column		 283mm 283mm

Distance from spindle nose to base		 1125mm 1125mm

Spindle travel		 130mm 130mm

Spindle taper		 M. T. 4 or R8 M. T. 4 or R8

Step of spindle		 6 6

Range of spindle speed 50Hz		 80-1250r. P. M. 80-1250r. P. M.

60Hz		 100-1500r. P. M. 100-1500r. P. M.

Swivel angle of table horizontally		 360degree 360degree

Swivel angle of headstock (horizontally)		 360degree 360degree

(perpendicularly)		 90degree 90degree

Table leaned		 45degree 45degree

Available size of table		 380*306mm 380*306mm

Available size on base		 418*415mm 418*415mm

Max. Travel of headstock		 250mm 250mm

Max. Travel of table bracket		 600mm 600mm

Motor Power		 1.1Kw(1.5Hp) 1.5Kw(2Hp)
As customer's requirement

Overall height		 1680mm 1680mm

Net weight		 430kg 435kg

Gross weight		 480kg 485kg

Packing size		 800x650x1830mm 800x650x1830mm

Warehouse to film
Packing & Delivery
