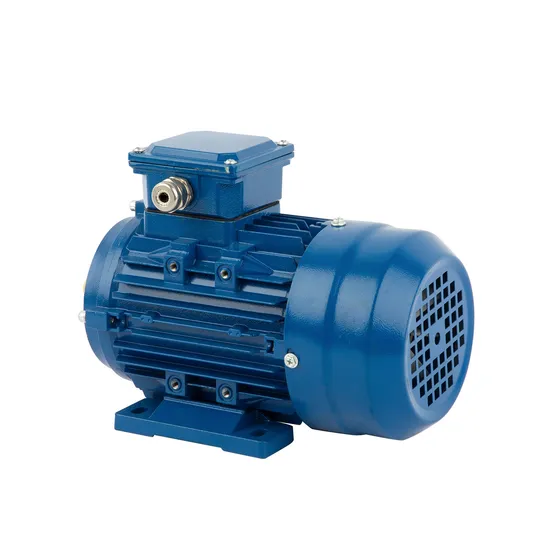

Multi-Functional Ie2 Asynchronous Induction Speed Motor 3 Phase Electric Motor

Product Description

Multi-functional Ie2 Asynchronous Induction Speed Motor 3 Phase Electric Motor Product Description
Product overview
YE2 series high efficiency three phase induction motors are produced according to GB/T11707, the efficiency reaches CLASS III of GB18613, which is equally to Ie2 of IEC60034-30.
It is high efficiency, energy saving of new technology and new materials , F class insulation of good safe reliability . And widely used for machines, fans,pumps, compressor, mine, construction etc.
Product Parameters

Product name	YE2 Series high efficiency three phase asynchronous motor(IE2)
Centre height of frame size	80~355mm
Power range	0.75~355kW
Rated Voltage	380V(special should order)
Rated frequency	50Hz (special should order)
Protection class	IP55
Duty	S1
Insulation Class	F( temperature rise80K)
Mounting type	B3( frame with foot , shield without flange) B35(frame with foot, shield with flange) B5(frame without foot, shield with flange)

Technical Parameter
Detailed Photos

Company Profile

Lundu Electromechanical Co., Ltd. is a collection of production, sales, scientif ic research, import and export and after-sales service as one of the high-tech enterprises. The company speciaizes in the production of YE3, YE4, MS, YS, YE) series of single, three-phasemotor; Aluminum motor, frequency conversion motor and other special motor.The company strictly in accordance with the ISO9001 international quality system certif ication management production, so that the speed of new product development and success rate is greatly improved, the company has advanced production, factory in spection equipment, so that the product quality is strongly guaranteed, so that it has won the trust and praise of a wide range of users. We face the future market with continuous innovation. Our products are exported to Europe, America, Africa, Southeast
Asia, Middle East and other countries and regions. FAQ
1.Are you a trade company or a manufacturer? A:We are an ISO, approved manufacturer specialized in water pump. OEM & ODM service are available. 2.What is your MOQ? A: Our minimum order quantity is 100 piece. 3.What is your delivery date? A: The delivery date is about 5-15 days after receipt of payment. 4.What is your payment terms? A: 30% deposit in advance and 70% balance before shipment. 5.Do you inspect the finished products? A: Yes, each step of production and finished products will be came out inspection by QC department before shipping.

---
