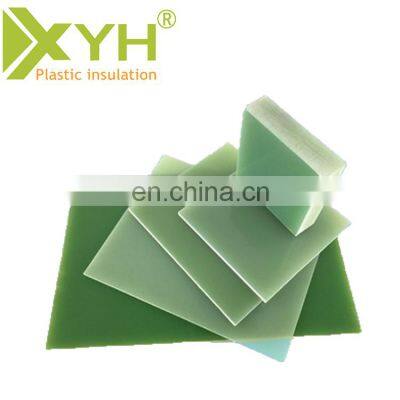

Product DescriptionFlame resistance epoxy glass cloth laminated fr4 / g10/ 3240 fiberglass insulation sheetFR4 (or FR-4) is a NEMA grade designation for glass-reinforced epoxy laminate material. FR4 is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing)."FR" stands for flame retardant, and denotes that the material complies with the standard UL94V-0. FR4 glass epoxy is a popular and versatile high-pressure thermoset plastic laminate grade with good strength to weight ratios.With near zero water absorption, FR4 is most commonly used as an electrical insulator possessing considerable mechanical strength.The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions.These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical andmechanical applications.Tehnical Data of G10/ FR4 Epoxy Fiberglass SheetPROPERTIESUNITMETHODESTANDARD VALUETESTING RESULTFlexural strength perpendicular to laminations – under normal room temperatureMPaISO 178≥ 350360Notch Impact strength parallel to lamination (Notched charpy)kJ/m2ISO 179≥ 3745Dielectric strength perpendicular to laminations (in oil 90±2℃), 1.0mm in thicknesskV/mmIEC 60243≥ 14.220.5Breakdown voltage parallel to laminations (in oil 90±2℃)kVIEC 60243≥ 3.5401MHz dielectric coefficient1MHz-IEC 60250≤ 5.54.91MHz loss factor1MHz-IEC 60250≤ 0.040.013Water absorption rate, 1.6mm in thickness%ISO 62≤ 0.250.02Insulation resistance Impregnated in water(22℃, 50%RH)ΩIEC 60093≥5.0×10105.6×1010FlammabilityclassIEC 60093FV0FV0Densityg/cm3-1.9-2.22.1Electronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceDetails ImagesG10/ FR4 glass epoxy sheetStandard color: Green, Black, Yellow, WhiteStandard size: 1020*1220mm, 1220*2440mmStandard Thickness: 0.2-50mmElectronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceProduct packagingElectronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceCNC Machining Service4mm PCB raw materials FR4 /G10 sheet$0.8-$3.6/ pcsEpoxy fiber FR4 Plastic Washer sheet / Epoxy resin G10/3240 sheet epoxy board$1.5-$6.5/pcsHigh insulating property Fr4/G10/3240 epoxy sheet phenolic resin laminated sheet board$3.5-$8.5CertificationsElectronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceCompany Profile*Shenzhen Xiongyihua Plastic Insulation Ltd. is one of the most professional plastic manufacturers and traders in China. We have the experience to offer the best to our many customers. We have a good ability of providing great service, quality materials and competitive pricing.*Shenzhen Xiongyihua Plastic Insulation Ltd. carries the largest inventory of engineering plastics in Shenzhen. Our service warehouse locations in No.2 Longxian Road, Xinsheng Community, Longgang Street, Longgang district, shenzhen. They are well stocked with sheets, rods, insulation material. We offer close tolerance cutting, machining and fabricating.*Strict quality control is implemented to make sure you get good quality products, good customer service, competitive prices and flexible working attitude which are the keys to our success. At present, owning to the well-connected overseas customer, our products are found in more than 50 countries, such as Asia, Middle East, Africa, Europe, Australia, Rusia, and America.Our export volume maintains a rapid momentum of growth.*We have been ISO, SGS certified to follow the standard production, to offer environmentally-friendly products. If you are interested in our products, warmly welcome to visit our website to check more information and products details.Electronic Insulation Materials G10 FR4 3240 Epoxy Fiberglass Sheet with Factory PriceContact usSend us Inquiry! Pls feel free to send me your inquiry or contact me for further discussion>>>>>>Attn: Ms. Belinda Wu (Sales Representative)Mobile / Whatsapp / Wechat: +86 15622961549 Email: sales06(at)
>>
