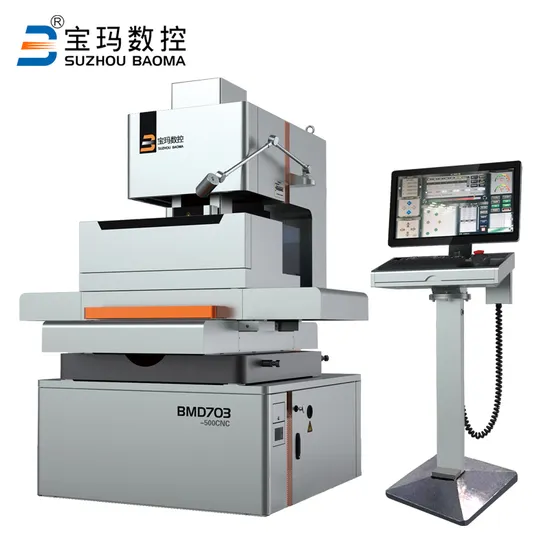

CNC Drill EDM Machine Bmd703-500CNC

Product Description

INTRODUCTION:
Control system with BAOMA independent intellectual property, can prepare a new program during drilling LAN port connection more stable and easy to troubleshoot and maintenance. Internet + function can remote monitor drilling condition. UG\SOLIDWORKS\AUTOCAD software can be used for programming Professional and efficient digitized High Frequency system can real time monitor the drilling condition and adjust the HF power to improve the drilling efficiency. Intelligent database based on a large number of testing for different machining requirement and can be upgraded for free. LED hand remote control box with coordinate display function. Basic function of control system Operation and input: touch screen, keyboard and mouse. 1 absolute coordinate,6 relative coordinates facility for positioning and machining. Function of drawing coordination conversion, zoom, rotation, tracing and displaying. Auto Short circuit manage function Memory function, Auto stop once finishing, stop point setting functions Auto edge fining, centering function Process path program, interpolation function Menu technology, Auto program function G code and other files management, Internet date transfer, flash disc reading Auto-repair the electrodes. Gap servo follow function Auto clear Z axis, depth setting function Function shift manual or CNC mode machining. LAN PORT FOR INTERNET FUNCTION Real time monitor for operation and modification of parameters. Linux operation system, control system build in IC of control module with Libre CAD drawing software. Auto transfer between drawing and points machining by convert software. New program can be prepared during machining. Auto edge finding, centering, coordinate setting, original finding, transfer between absolute coordinate and relative coordinate, DXF file reading generated by UG\SOLIDWORKS\AUTOCAD and changing to points machining. G code can be read. Databases function.

Item	Unit	BMD703-500CNC
Worktable size (L×W)	mm	590×410
Table travel(X×Y)	mm	500×400
Z axis travel	mm	300+320
Max. drilling depth	mm	0~300
Max. drilling speed	mm/min	60
Max. working current	A	30
Electrode diameter	mm	0.2~3.0
Load of table	Kg	300
Working solution		water/saponification
Working reservoir capacity	L	25
Power supply		380V/50Hz
Max Power consumption	KVA	3.5
Machine dimensions (L×W×H)	mm	1060×750×1700
Package dimensions (L×W×H)		1300×1040×2030
Machine weight	Kg	900
Controller type		Automatic Z axis
Digital display		X, Y, Z axis
Function of setting depth		have

---
