Colo-6020 Industrial Oven for Batch Powder Coating Manual Large Gas Curing Oven

Product Description

Product Description
Colo-6020 Industrial Oven for Batch Powder Coating Manual Large Gas Curing Oven

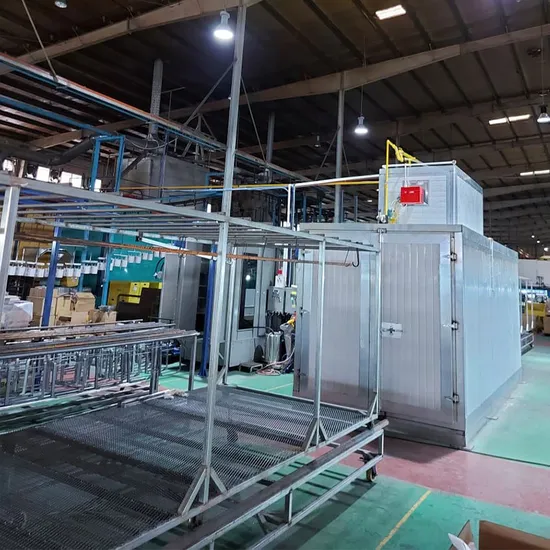

Industrial oven for batch powder coating has a working size of 6mx2mx2m, which is specially designed for batch curing small or long workpieces, such as frames, aluminium profiles.
Our curing oven utilizes a sandwich panel design. Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping, features quick heating efficiency ans energy-saving.
Detailed Photos
Industrial Oven for Batch Powder Coating Features
PLC Controller

This PLC controller offers all the features you need. the keyboard and LED display allows you to set and read precise temperature as well as duration required. These accurate operations are designed to optimize powder coating effect.
Gas/Diesel Burner

Italy imported Riello gas burner takes full utilizations of fuels, reaching the baking temperature faster, making heating process more efficient and energy-saving.
Circulation Fan

Circulation fan circles the hot air to warm the oven interior, minimize temperature difference and guarantee uniform-heated chamber. There is a isolation strip between fan and motor that tends to protect the motor from burning hot and extend its life.
Oven Wall Materials

Interlayer is rockwool insulation board, 100 mm thickness, density 120kgs/cbm. Together with 1mm heat-resistent galvanized innerwall and 0.7mm durable color steel outwall forms a sandwich structure which is anti-flame and heat-insulation.
Specifications
Industrial Oven for Batch Powder Coating Specifications

Model	COLO-6020
Worksize Dimensions	Width2000 * Height2000 * Depth6000 mm
Power Supply	LPG / Gas / Diesel
Voltage/Frequency	380V/220V (50-60Hz)
Warm-up Time	15-30 min. (180° C)
Temperature Stability	< ± 3.0-6°C
Temperature	Max. 250° C
Transport System	Two trolleys
Burner	Italy Riello, 20,0000cal
Circulation/ Air flow	Vertical ,Variable through holes on the walls
Ventilation Performance	8288-16576m3/h
Motor Power	5.5kW
Warranty	12 months

Application
Industrial Oven for Batch Powder Coating Applications
This powder coating gas curing oven is specially designed for our Malaysia customer for the application of long length workparts who requires batch production with saving budget.

Customers Reviews
Company Profile
We are in manufacturing of Powder Coating Ovens,we export powder coating oven over 9 year,full of experience and technology.The technical specifications, design, manufacturing, installation and commissioning process is offered as a complete package.
Our Powder Coating Ovens are preferably suitable for a wide range of powder coating and are available in many different sizes, types and temperature ranges.
All ovens are constructed from high quality components using our unique modular construction method.We have batch box type oven had wide range and readily available. Medium and big size industrial oven are built in Modular cassette and expandable construction. A unique feature of these oven are the World class Rockwool insulation for minimum heat loss.

---
