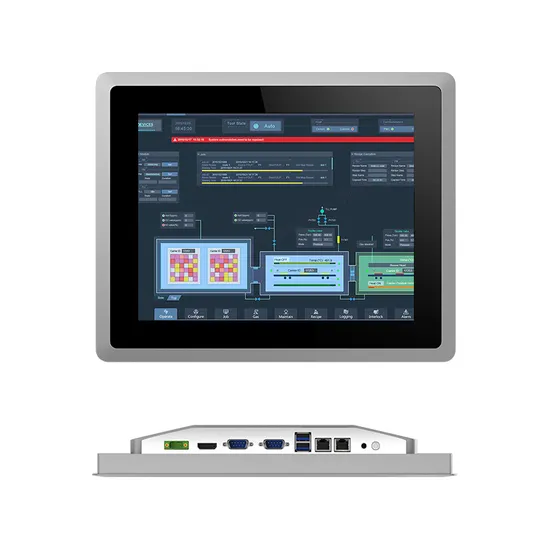

Industrial Pcap Capacitive Touch LCD Panel Monitor 10 12 15 17 19 Inch Touch Screen Monitor Computer Industrial Panel PC

Product Description

Product Description Industrial pcap capacitive touch lcd panel monitor 10 12 15 17 19 inch touch screen monitor computer industrial panel pc
Product Parameters

Senke Industrial PC					SK-K10DR	SK-K12DR	SK-K15DR	SK-K17DR	SK-K19DR
Motherboard		Confirguration			J1900,J6412,J4125,i3 i5 i7
Interface		WiFi,3/4G module			802.11b/g/n(optional),Support 3g/4g (optional)
		HDMI			1*HDMI output
		USB			4*USB 3.0
		Network			2*RJ45 with 1000 Base-T
		Com			com(RS485)*2
		Power supply			1*DC lock phoenix terminal,Support 9-36V
		Audio output			1*3.5mm audio
		Other			8*GPIO (optional)
Display		Screen type			10.4 LED	12.1 LED	15 LED	17 LED	19 LED
		Resolution			1024*768	1024*768	1024*768	1280*1024	1280*1024
		Size(mm)			210.4(W)×157.8(H)	245.7(w)×184.3(H)	304.1(W)×228.1(H)	376.3(W)×301.1(H)	376.3(W)×301.1(H)
		Contrast ratio			500:1	500:1	700:1	900:1	900:1
		Brightness			200cdm2	200cdm2	250cdm2	250cdm2	250cdm2
		Screen ratio			4:3	4:3	4:3	5:04	5:4
Structure		Front and back cover			Aluminum
		Craft			Glass frame paste, aluminum die casting
		Color			Black,grey
		Heat dissipasion			Fanless aluminum fin heat dissipation
		Panel indicator light			Power state, hard disk state
		Whole size			281*228*56.8mm	315*254*56.8mm	304*2941*55.3mm	404*341*56.3mm	445*3756*59.3mm
Touch screen		Type			Projected capacitive touch screen
		Touch point			10 point touch
		Physical Resolution			4096x4096
		Response time			<5ms
		Accuracy			<2.5mm
		Transparency			≥90%
		Protection			The surface is coated with 1:1 PVC protective film
Others		Working environment			­20ºC~ 70ºC;Humidity:10%~ 90%
		Storage environment			Temperature:-40ºC~80ºC ; Humidity:10%~90%
		Installation ways			Embedded,VESA100*100mm
		Power consumption			24W	25W	33W	34W	37W
Accessories		Manual			User Manual,certificate of qualification,warranty card
		Bracket			wall mounted bracket,embedded bracket,desktop bracket(optional)
		Adapter			Power adapter

Company Profile Guangzhou Senke Electronics Co., Ltd. Guangzhou Senke Electronics Co., Ltd. is a high-tech enterprise specialized in providing comprehensive technical services for touch query all-in-one machines, industrial tablets, advertising machines, payment kiosks, interactive whiteboards, etc. Its products have been widely used in banking, hospitals, industry and commerce, taxation, communications, housing administration, vehicle administration, power supply bureau, schools, monitoring centers, government departments, and other industries. The company implements the strategy of sustainable development and implements a humanized, scientific, and modern management model. The main products of the company have passed the national CCC certification and have established a complete sales network and after-sales service system to maximize customer demand. The company has a strong technical force, with various senior technical personnel in intelligent system design, construction, commissioning, maintenance, and strong scientific research and development capabilities and engineering practice capabilities. The company has consistently adhered to the principle of "integrity, pragmatism, harmony, and innovation", and has established a good reputation and popularity in the hearts of customers. Its products are supported by its excellent research and development. Excellent technology and perfect service system have occupied a leading position in the industry market.

---
