Woodworking UV PU PE Nc Primer Lacquer Furniture Solid Wood Plywood Polishing Sanding Machine

Product Description

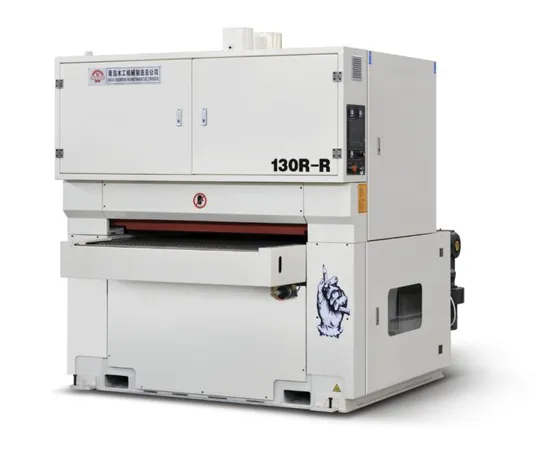

Upper float sanding machine

Model	SU130R-R
Working width	30-1300mm
Working thickness	3-100mm
Working length	>450 mm
Speed of sandpaper	5~18 m/s
Feed speed	5-35m/min
Size of abrasive belt	1330*2200mm
Diameter of sanding roller	Φ240mm
Power of abrasive belt on 1st unit	22kw 35shore rubber
Power of abrasive belt on 2nd unit	15kw 30shore rubber
Conveyer motor power	4kw
Lifting motor power	0.75kw
Brush motor power	0.37kw
Air blower power	0.04kw*2
Air pressure	0.55Mpa
Compressed air consumption	0.09m³/min
Volume of dust collector	>18000m³/h
Voltage	380V 50Hz, 3Phase
Overall dimension	1880*2000*1960mm
Weight	3400Kg

1. Function and Characteristics:
(1) This primer sanding machine is kind of machine that only keep the upper unit movable while the workbench keep stay and the sanding units can work up and down. It is mainly used in furniture floor and all sorts of plank paint sanding especially suitable for coating line systems
(2) The front roller is 35 shore rubber rollers; the second one is 30 shore rubber roller for fine polishing.
2. Standard installation:
(1). The press roller and press shoes protects device to keep the board on the feeding table
(2). Schneider Electrical component
(3). Photoelectric control equipment which control vibrating of abrasive belt along center.
(4). Brush roller cleaning the panel after sanding
(5). Oil/air filters supply purity air continually
(6). Japanese NSK internal bearing reduce vibration of belt
(7). Sanding belt automatic centering.
(8). Touch screen operate the machine easily
(9). Operation & Maintenance manuals in English, Maintenance Kit
(10). High quality conveyor belt from Taiwan
Product detail
Validity: 20 Days
Payment: 30% TT deposit as down payment, 70% balance by TT before shipment, or LC
Package:Bare package and fit in container directly.
Lead time: 60 days after receive the deposit.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Installation: If need to install, the buyer bear round-trip ticket from China to buyer site, Visa fee, food, accommodation and local transportation of seller's engineer, plus USD100.00 service fee per engineer per day.

---
