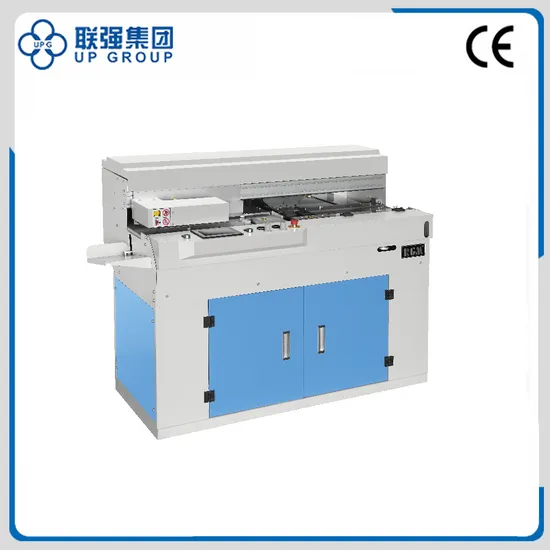

LQ-TS200/200B Full-automatic Intelligent Plastic Binder(PUR)

Product Description

Product Description Technical characteristics
1.Equipped with new color touch screen displayer and support multi languages.
2.Automatic adjuster with a memory system
3.Automatic book core thickness-measuring device is designed for special glued bookbinding.
4.Inserted with a close gluing system, which is used for gluing the back and side of the book with a 2KG pressure glue pot, with auto glue breakage system.
5.With auto glue cleaner, which makes it more easy to clean daily.
6.Equipped with an etamine coater
7.Auto adjustable up sealing clamper, it clamping time is adjustable.
Product Parameters

Speed	200 books/hr
Pieces	1
Binding size max	450*380mm
Binding size mini	120*100mm
Compressed air pressure max	0.8MPa
Binding thickness	2-50mm
Power	4.6kw
Weight	185kg
Overall measurement	1850*800*1230mm

Company Profile
Superiority
Our Customers
Exhibitions
Our Services Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.

---
