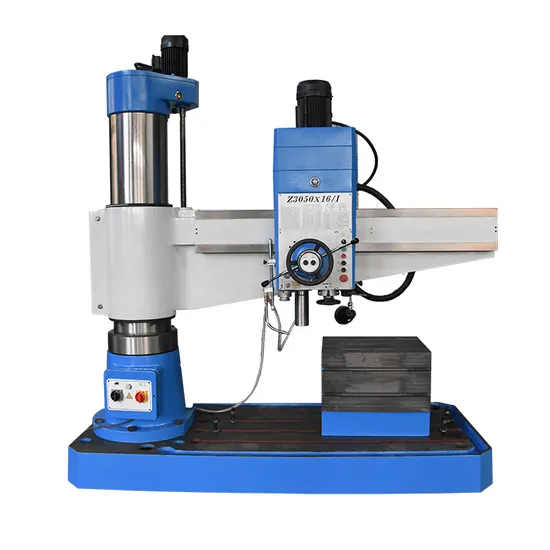

Automatic Feed Arm Radial Drill Z3040X14/I Steel Drilling Machine Radial

US$2,000.00-5,000.00 1 Piece (MOQ)

Basic Info.

Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Power Type
Electric
Drill Capacity
32mm-80mm
Beam Length
1100mm-2000mm
Drive Type
Mechanical/Hydraulic
Transport Package
Plallet
Specification
32mm-80mm
Trademark
BOLI
Origin
China
HS Code
8459290000
Production Capacity
5000

Product Description

RM4011/RM4014/RM5016 Radial Drilling Machine
· Mechanical driven
· Mechanical clamping
· Mechanical changing speed
· Up & down by power
· Auto feeding
Standard Accessories:
> Rise block
> Taper sleeve
> Tool releasing wrench
> Drift
> Eyelet bolts
> Box work table
Optional Accessories:
> Quick instead chuck
> Tapping chuck
> Angle work table
Technical Parameters:
Model No. Unit RM4011 RM4014 RM5016
max drilling capacity mm 40(1.57") 40(1.57") 50(1.97")
distance between spindle surface to work table mm 260~1050(10.24"~41.34") 260~1150(10.24"~41.34") 260~1150(10.24"~41.34")
distance between spindle center to column center mm 360~1100(14.17"~43.31") 360~1400(14.17"~55.19") 360~1600(14.17"~63.00")
spindle travel mm 200(7.87") 200(7.87") 220(7.87")
spindle taper MT4 MT4 MT5
spindle speed range r.p.m. 75,130,240,380,660,1200 75,130,240,380,660,1200 78,135,240,350,590,1100
spindle steps steps 6 6 6
spindle feed range r.p.m. 0.10~0.25 0.10~0.25 0.10-0.56
spindle feed steps steps 3 3 6
spindle rotary angel ° 360 360 360
main motor power kw 2.2 2.2 4
up & down motor power kw 0.75 1.5 1.5
packing size mm 1500×705×2200 1800×810×2300 2170×950×2450
G.W. kg 1600 2200 2800
