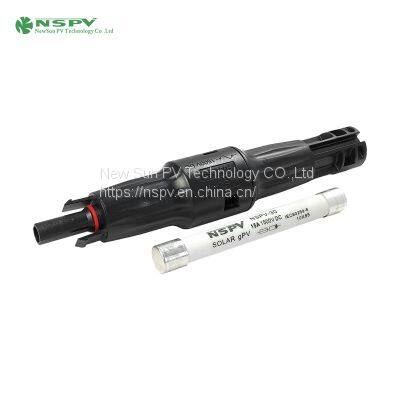

NewSun 4F0-15 Solar Cable Fuse Connector DC 1500V
Product Specifications
Insulation material : PPE/PA
Overvoltage category/Pollution degree : CATIII/2
Rated current(Without fuse) : 50A
Safety degree : II
Rated current(With fuse) : 1A,2A,3.5A,4A,5A,8A,10A,12A,15A.20A.25A.30A.44A.50A
Flame dass : UL94-V0
Rated voltage : 1500VDC
Insertion force/Withdrawal forcee : ≤50N/≥50N
Test voltage : 6kV(50Hz,Imin)
Ambient temperature range : -40℃...+85℃(IEC)
Typical contact resistance : ≤0.25 mΩ
Upper limiting temperature : 110℃(IEC)
Contact material : Copper,Tin plated
Connecting system : Crimp connection
Degree of protection : IP68
Nut cap locking force : 1.5-1.8Nm
Drawing:
We are pleased to introduce our 4F0-15 model fuse connector, which is one of the perfect solution for your overcurrent protection needs. This fuse connector is designed to be easy to install and replace inline fuse, provides superior performance and reliability. With its easy-to-use design, it ensures that fuse replacement is both safe and convenient.
This fuse connector is made from high-quality imported PPE material, which makes it flame resistant and anti-UV and ensures that it will last for many years to come. Additionally, the fuse connector is designed to be both heat and cold-resistant, so you can be confident that it will keep the circuit protected in even the most challenging environments.
One of the key advantages of the 4F0-15 model fuse connector is its ease of installation. It can be quickly and easily installed by virtually anyone, without the need for any special tools or technical expertise. This means that you can get your circuit up and running quickly and efficiently, without having to worry about complicated installation procedures.
Another important advantage of this connector is its ability to facilitate safe and easy fuse replacement. The fuse connector has been designed to provide secure and reliable contact between the fuse and the circuit, ensuring that it can be easily replaced without the risk of damaging the circuit. This not only makes the connector safer to use, but it also reduces downtime and maintenance costs.
Overall, the 4F0-15 model fuse connector is an excellent choice for anyone looking for a high-quality, reliable, and easy-to-use circuit protection solution. Whether you are a professional electrician or a DIY enthusiast, this connector is sure to meet all of your needs and deliver outstanding performance for years to come.
>>
