Basic Info.
Speaker System Audio Output Mode
Surround Sound
Frequency Response
40Hz-20kHz
Power Peak
Lf:1600W/Hf100W
Sensitivity
Lf:100dB/Hf:102dB
Speaker
Cinema Speaker, Home Speaker
Cabinet Box
15 Birch Plywood
Drivers
Neodymium Ferrite
Specification
755*465*850mm
Product Description
Product Description
Product Specification

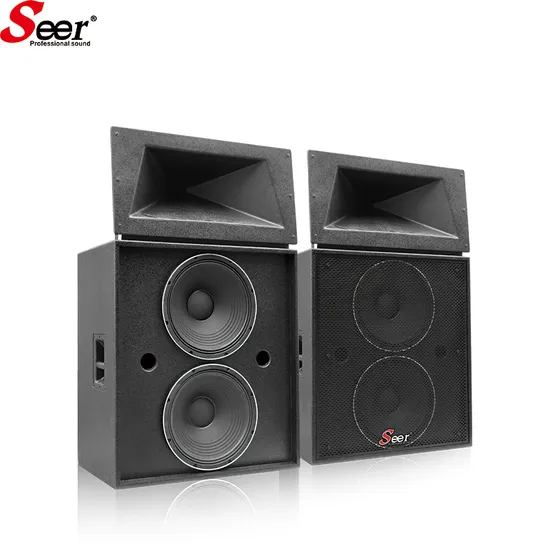

The TD-215 is a cost-effective main sound speaker designed for door-to-door cinema. The product is a full frequency speaker using power frequency division, and its design can reduce the number of power amplifiers used, reduce the cost of cinema construction, and has a very high cost performance. This box consists of a double 15 "woofer" and a single 1.75 "treble unit. Products are strictly tested to ensure consistency. The treble horn of this system can be adjusted at several specific angles to meet the sound field coverage. Suitable for small cinemaProduct Parameters
| Frequency response | 40Hz-20KHz |
| Directivity Angle | H90° x V40° |
| Impedance | 4ohms |
| Long-term Power(RMS) | LF:800W/ HF:50W |
| Power peak | LF:1600W/HF100W |
| Sensitivity | LF:100dB/HF:102dB |
| Frequency division point | 1.5KHz |
| Harmonic distortion | ≤%2 |
| LF Dimensions(H×W×D) | 755×465×850mm |
| HF Dimensions(H×W×D) | 755×480×405mm |
| Low | 15inch *2 (380mm) |
| High | 3inch *1(75mm) |
| N.W. | LF:60kg/HF:7.4kg |
Company Profile
Company Information
Guangzhou Seer Audio CO.,LTD is a professional sound system manufacturing company. Our factory specialize in manufacture speaker cabinet, loudspeaker, Tweeter component, amplifier, processor and stage equipment. Our sound system company was established in 1997, and the manufacturing company was established in 2004.We focus on the quality and stability of our products and aim to provide high quality products to our customers. Seer Audio use the most advanced engineering to make sure every product meets the requirements of the most professional and demanding applications. We are always working on expanding the scope of business all over the world. Our products won great deal of honour, such as ISO 9001:2000 quality system authentication, all of our goods pass ROSH test and got CE certificate. We have full confidence in our factory and our future.
Exhibitions
Project
Certifications
Company Activity
FAQ
FAQ
Q1.Can we have our logo or company information on your profucts or packages?
A1.Sure. We accept OEM/ODM orders. Just let us know your requirements.
Q2.Are you a pro-audio manufacturer or trade company?
A2.We are a 100% manufaturer located in Guangzhou.We specialize in R&D, manufaturing, sales.
Q3.How long can we expect delivery?
A3.The high season takes a month and the low season takes 15 days.
Q4.What is the What is the minimum order quantity? How to pay?
A4.The minimum order quantity is one, we only accept T/T.
Q5.How old is the company?
A5.Our company was established in 1997 and has a history of 27 years.
>>
