Vulcanized Rubber Shoe Sole Press /Rubber Slipper Compression Molding Machine/Rubber Outsole Vulcanization Press

Product Description

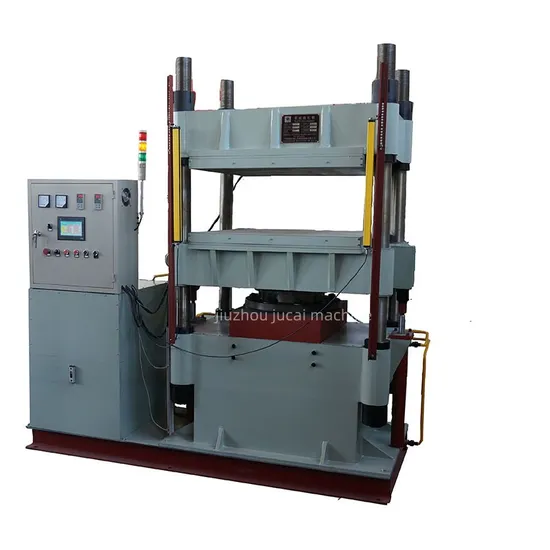

Vulcanized rubber shoe sole press /rubber slipper compression molding machine/rubber outsole vulcanization Press Product Description Rubber vulcanizing press machine mainly consists of cylinder , heating plate , piston , electrical cabinet , hydraulic station , etc . It is widely used to vulcanizing different types of rubber and plastic products .
Main Features:

1. The machine is fully automatic function , it can not only push and pull the mold in and out automatically , but also can ejector the mold or even product from cavity of mold

2.The Electrical control cabinet adopts the famous imported SIMENS brand

3.The hydraulic spare parts adopts the famous YUKEND Brand

4.In/out molds are treated with nitrogen and grinded . These oricesses achieve high precision parallelism of working benches

5.high precision structural steel designs speedy , convenient to fit various molds . Adjusting , repairing , or maintaining is very easy and accurate

6.slow speed of aligment adjusting is provided to make the molds calibration safer and more accurate

Detailed Photos
Product Parameters

model/	XLB-D0.25MN	XLB-D0.5MN	XLB-D0.8MN	XLB-D1.0MN	XLB-D1.0MN
Mold closing force	0.25	0.5	0.8	1.0	1.0
Heating plate size	300*300 350*350	400*400 450*450 500*500	500*500 600*600	450*450	550*550
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	152	200	250	285	300
Unit area pressure of heating plate (kg/cm2)	27.7 20.4	31.2 24.6	32 22.2	49.3	33
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen
Gross weight	900	1200/1350/1450	1550/1750	2200	2300

model	XLB-D1.0MN	XLB-D1.2 MN	XLB-D1.6 MN	XLB-D2.0MN	XLB-D2.5MN
Mold closing force	1.0	1.2	1.6 MN	2.0	2.5
Heating plate size	600*600	700*700	750*750	800*800	1000*1000
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	300	320	360	400	450
Unit area pressure of heating plate (kg/cm2)	27.7	24.5	25	31.25	25
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen

FAQ 1.Are your company a trading one or a factory?Factory + trade (integration), 30 years focusing on rubber machine design and production .OEM is also acceptable for us.2.How to choose the most suitable products?Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.3.Do you accept customization service?Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.4.How about your warranty?Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,necessarily, our engineers may go to your place for better service.5.How about the packing for machine, is it safely protected during transportation?Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.6.What is the order process?Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.

---
