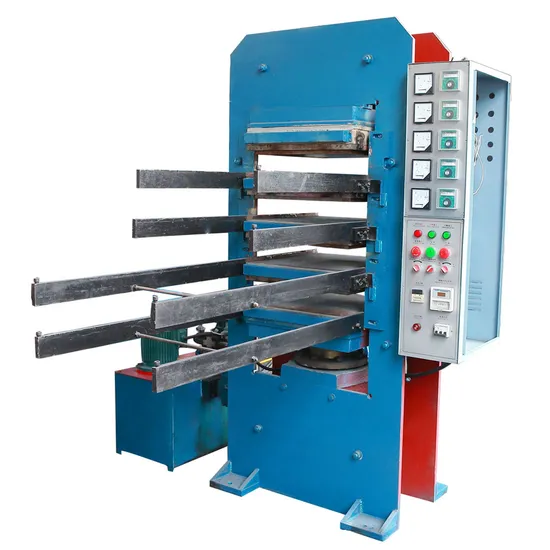

Factory Direct Sales 550*550 mm Rubber Floor Tiles Making Machine

Product Description

-High speed open/close molds, high production efficiency.
-Automatic in/out mold and ejector device, low labor strength.
-Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
-The electric system adopt PLC programming control, which is easy to be operated.
-We can also design and produce according to customer's requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time.

Model	XLB-D 550*550*4	XLB-D 1200*1200*2
Total Pressure	50T	200T
Hot plate size	550*550*60mm	1200*1200*80mm
Plate spacing	150mm	200mm
Working layer	4	2
Hot plate quantity	5	3
Piston stoke	400mm	400mm
Piston quantity	1 set	1 set
Piston diameter	200mm	360mm
Structure	Four columns	Frame
Max. heating temperature	Electricity Mode 250ºC	Electricity Mode 250ºC
Motor power	2.2kw	2.2kw
Dimension	2200*900*2200mm	2500*960*2500mm
Weight	3600kg	8300kg

1. Simple and convenient structure, flexible operation, commodious space. The cylinder and plunger are made up of high quality materials
2. Hydraulic station and electric cabinet are Located in both sides of the main engine
3. Conveniently operation
4. Without oil spilling or off pressure
5. Low noise.

---
