Oturncnc High-Speed Vertical 3/4/5 Axis Linkage Machining Center Vmc CNC Milling Center with CE

Product Description

Product Description

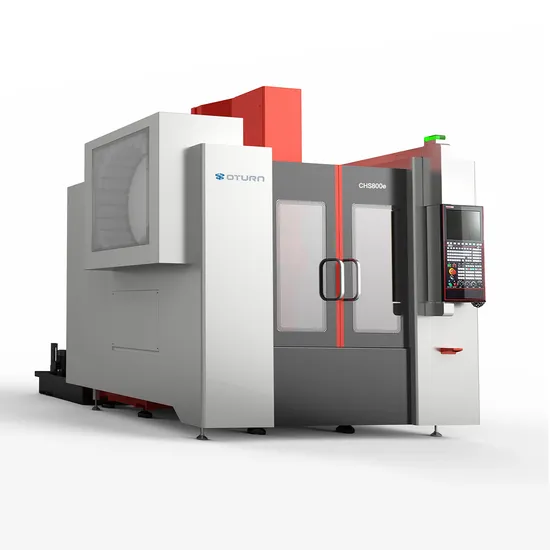

High-speed CNC vertical machining center CHS800 has the characteristics of high rigidity, high precision and high efficiency processing. The column adopts a herringbone design with a large span, which can greatly enhance the bending and torsion strength of the column; the worktable adopts a reasonable slider span and is surface quenched to make the worktable evenly stressed and improve the hardness; the bed adopts a trapezoidal cross-section to reduce the The center of gravity improves torsional strength; the entire machine uses finite element analysis to design each component to provide the best overall stability.
The three-axis rapid feed is 48M/min, the T-T tool change time is only 4 seconds, the tool magazine is fully loaded, 24 hours of tool change without alarm, and the 3-dimensional inspection of each machine's trial processing sample has passed, ensuring the high efficiency, continuous stability of the machine tool after leaving the factory. It is suitable for various two- and three-dimensional concave and convex models with complex shapes and complex cavities and surfaces. It is also suitable for milling, drilling, expanding and boring of valves, cams, molds, plates and boxes in the manufacturing industry. Tapping and other processing processes are more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be entered into automatic lines for mass production.
Adopting C80 PLus system, 15-inch large LCD display, dynamic graphic display of tool path, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and faster; the high-speed bus communication method greatly improves the CNC system The data processing capability and control performance are improved, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, which facilitates the fast and efficient transmission and online processing of large-capacity programs.
Product Parameters

	Project	CHS800e
Travel	X/Y/Z axis travel	800×600×500mm
	Spindle nose to table center	100-600mm
Work Table	Table size	900×500mm
	Max.table load	600Kg
Three-axis feed	Rapid speed of X/Y/Z axis	48/48/48
	Cutting feed	1-15000
Spindle	Spindle specifications	190/built-in
	Spindle taper	HSK-A63
	Max.spindle speed	24000rmp
	Spindle motor power	60KW
	Spindle motor torque	47.7Nm
Tool magazine ATC	Number of tool	24T
	Max. tool length	300mm
	Max. tool diameter	70/120mm
	Max. tool weight	8kg
	Tool changetime(tool to tool)	4S
Three axis	X-axis guide	35/2 Roller
	Y-axis guide	35/2 Roller
	Z-axis guide	35/3 Roller
	X-axis screw	φ40×16
	Y-axis screw	φ40x16
	Z-axis screw	φ40×16
Precision	Positioning precision	±0.005/300mm
	Repeating positioning precision	±0.003/300mm
Other	Power supply capacity	70KVA
	Air source flow	≥0.4mm³/min
	Air demand	≥6kg/c
	Machine weight	5.5T
	Machine size	2653×3122×2635MM

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA.
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment.
Q6:What's the OMQ?
A: 1 set. (Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.

---
