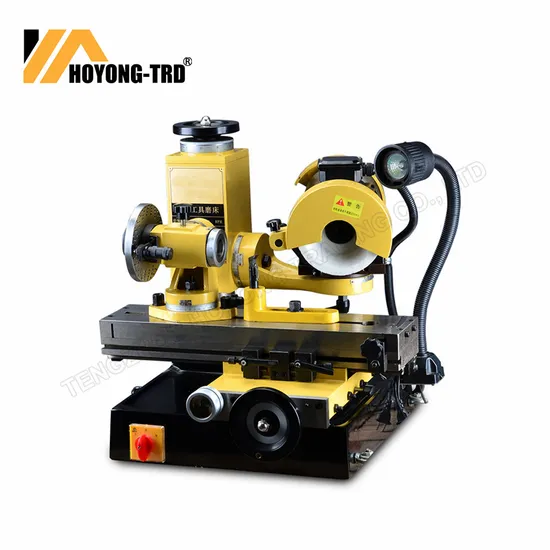

Universal Tool Grinder and Universal Reamer Bit Grinding Machine Mr-600f

Product Description

Production Description
Sharpening scope: In hole, outer annulus, column, trench, taper, end mill, disc cutter, lathe tool, square shape and diamond cutting tool,
gear cutting tool and so on.
The working table uses dovetail guide rail or high precision straight line roiling guide rails,good back and forth movement, high stability,
steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of
material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel,
adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper

Model	MR-600F
Max. Grinding diameter	250mm
About worktable diameter	300mm
About workable traveling schedule	150mm
Elevating Distance of Wheel head	150mm
Rotating Angle of Wheel head	360°
Grinding head speed	2800RPM
Horse Power and Voltage of Motor	3/4HP,380V
Power	3/4HP
lateral feeding distance	190mm
Workable area	130×520mm
Elevating Distance of Wheel head	160mm
Height of the head holder	135mm
Taper hole of the main spindle of the head holder	mo-type 4#
Grinding wheel	150×16×32mm
Dimension	65*650*70cm
Net weight / gross weight:	165kg/180kg
Optional Equipment	50E grind spiral milling cutter ball end mill, R type lathe tool,graver and other taper milling cutter.
	50K can grind drill bit ,screw tap, side mill,round bar and so on.
	50D can grind end mill ,side mill and so on.
	50B tablebox
	50J thimble

---
