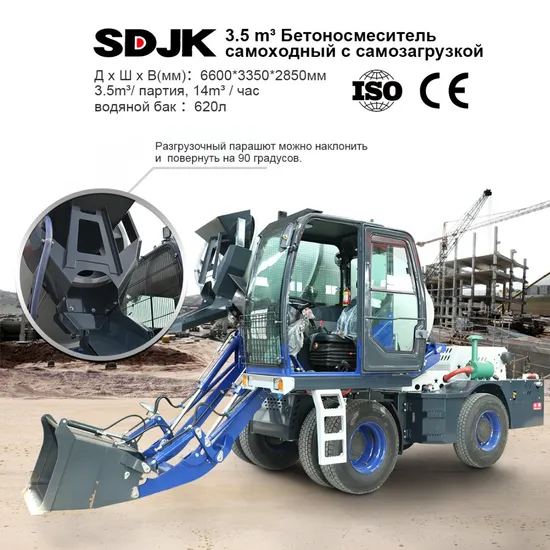

3.5m3 Rotary Cabin Cement Concrete Mixer Machine Concrete Truck Mixer

Product Description

3.5m3 Rotary Cabin Cement Concrete Mixer Machine Concrete Truck Mixer
The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
3.5 CBM yield JKM-26 Self Loading Concrete Mixer Truck

Model	JKM-35
Mixing Drum
Mixing Capacity	3.5m³
Geometrical Capacity	5 m³
Concrete Output	3.5m³/batch, 14m³/h
Drum Rotating Speed	18 rpm
Drum Rotating Angle	270°
Engine
Model	4105
Type	In-line, 4-Cylinder, 4-Stroke, Turbo Charged,Water Cooled
Rated Power	85 KW
Emission Standard	Euro II
Loading Bucket & Discharge Chute
Loading Bucket Capacity	0.6 m³
Loading Times to Full Drum	5 Times
Discharge chute	2 Sets
	With Extender
	Rotation angle range 90°, manual shank
Water System
Max. Water suction Volume	310L/min. (Self-priming electronic water pump)
Water tank Volume	2x310 L
Mixer
Max. Travel Speed	30 km/h
Gradeability	30°
Min. Turning Radius	5300 mm
Operating Weight	8000 kg
Max. Load	8200kg
Max. Gross Weight	16200 kg
Overall Dimension (L×W×H)	6600*3350*2850mm
Fuel Tank Volume	75 L
Total Hydraulic System Capacity	75 L
Oil Tank Volume	16 L

1.JKM-35 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.
2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
If this model can not meet your work need, We also have other models:
1.5CBM-JKM-15 , 2CBM-JKM-20 , 2.6CBM-JKM-26 ,3.5CBM-JKM-35 ,4CBM-JKM-40
Welcome Contact us: contact us for more details.

If this model can not meet your work need, We also have other models:
1.5CBM-JKM-15 , 2CBM-JKM-20 , 2.6CBM-JKM-26 ,3.5CBM-JKM-35 ,4CBM-JKM-40
Welcome Contact us: contact us for more details.

---
