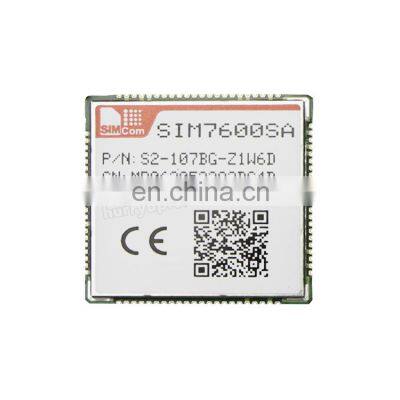

SIMCOM SIM7600SA 4G Multi-Band LTE-FDD/HSPA LGA Module

Product Description

Product Description
Description• SIM7600X is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/WCDMA/EDGE/GPRS/GSM module solution in LCCtype which supports LTE CAT1up to 10Mbps for downlink and 5Mbps for uplink data transfer.• Designed in the compact and unified form factor, SIM7600X is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT3 SIM7100 and LTE CAT4 SIM7600X-H module, which allows customer to design their application once for different technology and benefit from great development time-saving.General features Variant for EMEA/Korea/ThailandSIM7600E:• LTE-TDD B38/B40/B41• LTE-FDDB1/B3/B5/B7/B8/B20• UMTS/HSPA+ B1/B5/B8• GSM/GPRS/EDGEB3/B8 Variant for North AmericaSIM7600A:• LTE-FDDB2/B4/B12• UMTS/HSPA+ B2/B5 Variant for Australia/New Zealand/South AmericaSIM7600SA:• LTE-TDDB40• LTE-FDDB1/B2/B3/B4/B5/B7/B8/B28• UMTS/HSPA+ B1/B2/B5/B8• GSM/GPRS/EDGE850/900/1800/1900MHzSpecifications for Data transfer• LTE CAT1-Uplink up to 5Mbps-Downlink up to 10Mbps• HSPA+-Uplink up to 5.76Mbps-Downlink up to 42 Mbps• WCDMA-Uplink/Downlink up to 384Kbps• EDGE-Uplink/Downlink up to 236.8Kbps• GPRS-Uplink/Downlink up to 85.6KbpsOther features• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10• USB Driver for Linux /Android• RIL supporting for Android 2.4/4.0/5.0/6.0/7.0• MBIM to Win8• Firmware update via USB• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS• SSL3.0/TLS1.0/TLS1.2• DTMF (Sending and Receiving)• Audio Playing• USB Audio and VoLTE• FOTAInterfaces• USB2.0 with High speed up to 480Mbps• UART• GPIO• Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas• (U)SIM card (1.8V/3.0V)• Digital Audio through PCM• MMC/SD• ADC• GNSS: GPS/GLONASS/Beidou/Galileo*Certifications(Plan)• RoHS Compliant• CE(SIM7600E/SIM7600SA* )• FCC/PTCRB/AT&T* (SIM7600A)• ACMA* (SIM7600SA) *Under Development/TestingWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC

---
