Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Max. Travel Speed
2.5/4.5km/H
Width of Steel Track Shoe
450mm
Standard Bucket Capacity
0.28m³
Maximum Bucket Digging Force
56kN
Maximum Arm Digging Force
38kN
Hydraulic System Pressure
27MPa
Machine Weight(with Canopy)
7500kg
Boom Swing Angle(Left)
75°
Swing Radius at Tail
1730mm
Min.Ground Clearance
375mm
Overall Dimension (L*W*H)
6054mm*2216mm*2672mm
Maximum Vertical Digging Depth
2968mm
Transport Package
20gp Container
Specification
2840*880*2220mm
Production Capacity
50000/Year
Packaging & Delivery
Package Size
1200.00cm * 230.00cm * 269.00cm
Package Gross Weight
7500.000kg
Product Description

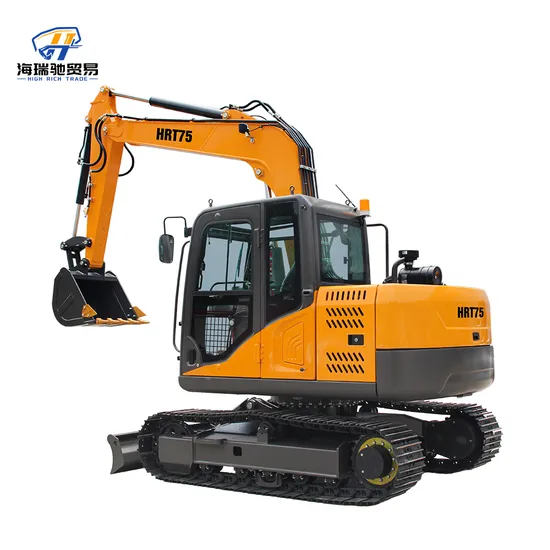

Highrich excavators use kubota or weichai efi engines (compliant with national iii emission regulations), which are powerful, energy-efficient, reliable and durable; comfortable to operate, high operating efficiency and excellent cost performance.
• High-power efi engine, powerful, low fuel consumption and high reliability
• Brand-new hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and more convenient operation
• A new generation of control system, intelligently adjusts the hydraulic absorption power according to the working conditions, optimizes the system matching and ensures full performance of the whole machine.
• Brand-new cab, safe and reliable.
• There are other models, such as 1 ton, 1.2 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 2.2 tons, 2.5 tons and so on.
| Technical Parameters |
| ENGINE |
| Emission Standard | Euro 5 |
| Make /Model / | KUBOTA(V2607) |
| Power /Rotation speed | 43/2000 |
| Number of cylinder | 4 |
| TRACK SYSTEM |
| Maximum Travel speed | 2.5/4.5km/h |
| Width of track shoe | 450mm |
| Number of track shoe per side/ | 39pcs |
| Number of upper roller per side/ | 1 |
| Number of bottom roller per side/ | 5 |
| PERFORMANCE PARAMETER |
| Standard Bucket capacity | 0.28m³ |
| Swing speed | 11rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 56KN |
| Maximum Arm digging force | 38KN |
| Hydraulic system pressure | 27Mpa |
| Machine weight | 7500kg |
| Fuel tank | 120L |
| Hydraulic oil tank | 100L |
| MACHINE SIZE |
| Overall dimension (L*W*H) | 6054mm*2216mm*2672mm |
| Height of cabin | 2672mm |
| Track length on ground(Axle base) | 2209mm |
| Track gauge | 1745mm |
| Minimum Ground clearance | 375mm |
| Swing radius at tail | 1730mm |
| WORKING RANGE |
| Maximum Digging height | 7023mm |
| Maximum Dumping height | 5195mm |
| Maximum Digging depth | 3898mm |
| Maximum Vertical digging depth | 2968mm |
| Maximum Digging radius | 6182mm |
| Minimum swing radius | 1740mm |
| Maximum Lifting height of blade | 382mm |
| Maximum Cutting depth of blade | 332mm |
