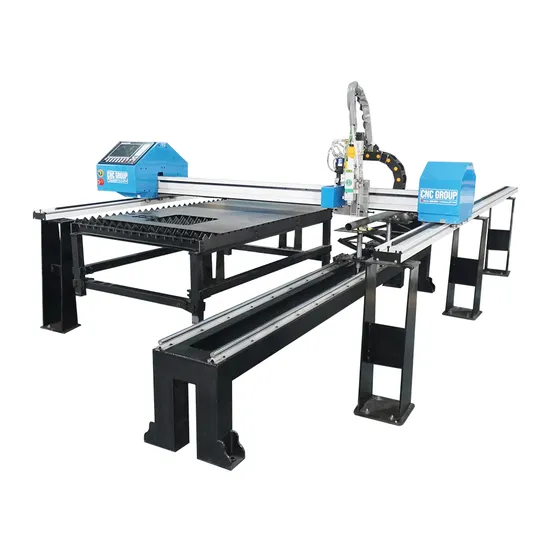

High Cost Performance Portable Gantry Laser Cutting Machine Mini Laser Cutting Machine CNC Fibre Laser Cutting Machine Gantry Fiber Laser Cutting Machine.

Product Description

Product Description


Detailed Photos
Packaging & Shipping
Company Profile
Our Advantages
L4310HX numerical control system is a more powerful, easier to operate and more cost-effective product developed by absorbing the advantages of many numerical control systems at home and abroad.The product adopts three axis digital position control mode and is suitable for laser plane cutting and round pipe cutting machine tools. The control system is light and portable, simple to operate, easy to use, all operations with menus or graphical prompts, silly operation.All key switch humanized design, comfortable and convenient. L4310HX controller adopts high-performance ARM chip and super-large scale PROGRAMMABLE device FPGA to run multi-task real-time operating system. It combines software interpolation with hardware interpolation to make the high-speed operation more stable, reliable and quick response. The style is as follows
Chinese, English, Spanish, Portuguese, French, Russian, Danish, Korean, Japanese and other languages menu, language one-click switch.In addition to Chinese and English, customers are required to provide language translation documents, can support most languages (except Thai). 53 common graphics libraries (including grid graphics), optional set slice size and hole size. Support EIA codes (G codes) and G codes such as TXT, CNC, NC, MPG, and B3. Support ESSI code common commands. Automatic edge finding function. Support laser three stage perforation process, support focus adjustment. Integrated bus heightener control, through the system to modify the parameters of the heightener, monitoring the status of the heightener, convenient operation, simplified wiring. Processing rate, running time, perforation times and other information statistics Compact keyboard design, but the function is not simple, so that manual input files more comprehensive.
Figure proportion, rotation, mirror adjustment. Figures can be matrix arrangement, staggered arrangement, stacked arrangement. The original size and slit size of the workpiece are displayed at the same time, which is intuitive and convenient. Graphic plate calibration, any plate edge can be used as calibration edge. Can customize the coordinate system, support two - dimensional coordinate system of four. You can customize all input and output port types (normally open or normally closed) and number. Self-diagnose all I/O status and key status of the system for easy check and troubleshooting. Front U disk interface, convenient program transmission. System upgrade using U disk upgrade method, convenient and practical, provide lifelong upgrade service. Supports system backup and system restoration. System restoration can be performed to restore only the operating system or to the factory default state. All functions and processes of the whole system can be upgraded online to avoid aftersale worries. Processing files can be imported or exported individually or completely. Parameter backup and parameter restoration. All kinds of processing parameters are complete, to meet the needs of different technology. Real-time acceleration and deceleration in motion. Manually select the starting line or the punch point. Dynamic/static processing graphics display, graphics zoom in/out, dynamic tracking of the cutting point in the zoom state. FPGA high-speed, high-precision interpolation control, high-speed operation, smooth operation, low noise. Arbitrary setting of starting speed, speed up and down time. With power, breakpoint protection memory function. "Offset cutting" function can avoid the sheet waste caused by the wrong calculation of the discharge. You can set different management rights and passwords to protect the rights and interests of device manufacturers. Remote control that supports CAN interface. Supports the laser point-to-point function.
FAQ

---
