Rubber & Plastic Universal Wear Testing Friction and Abrasion Tester

Product Description

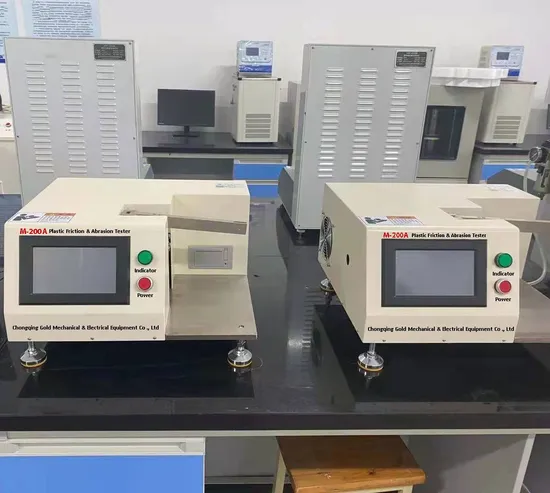

M-200A Plastic Friction & Abrasion Testing Instrument The coefficient of friction(COF) is an important indicator in the production of many products. By testing the coefficient of friction of the samples, it is possible to evaluate the performance of the product in terms of rolling resistance, abrasion resistance, anti-slip properties and even noise.
M-200A Friction and Wear Tester can not only carry out sliding friction and wear performance test, but also friction force, coefficient of friction and wear measurement. The test process can simultaneously display the current value, torque, time. Users can print out the standard requirements of the test report.

M-200A Plastic Friction & Abrasion Tester Technical Specification
No.	Item	Parameter
1	Sample Size	30mm×7mm×6mm
2	Rotation Speed	200r/min
3	Over Load	20kg(196N)≤1%
4	Friction Ring Size	¢40×10mm, chamfer 0.5×45°, concentricity deviation of outer surface and inner circle is less than 0.01
5	Friction Ring Material	No.45 steel, quenched, heat treatment HRC40-45, external surface finish 8
6	Friction Torque	0--4N·m
7	Speed Accuracy	≤1%
8	Friction Torque Accuracy	≤1%
9	Sensor Measuring Accuracy	≤1% FS
10	Size	400mm*500mm*350mm
11	Weight	50kg

Chongqing Gold Mechanical & Electrical Equipment Co ., Ltd We are a big scale corperation integrating R&D, production and sales. We specialized in lab,survey and electric equipment export for more than 15 years. We aims to provide high quality equipment to customer at moderate price. We now have more than 200 employees and 4 factories, Covering an area of 20 acres. Except for the top quality of our product, customer are always satisfied with our 24*7 after sale service. We can always develop a good product proposal based on customer's requirement.

---
