Product Details
Product Description
Product Description

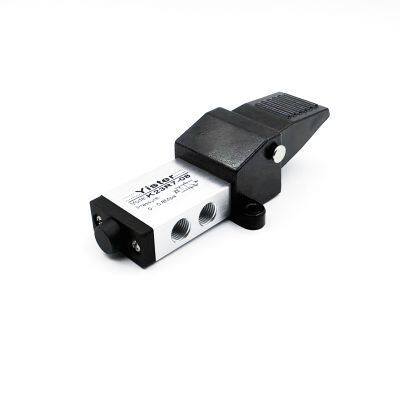

1/4 inch K series 5/2 way K23R7-L6 K23R7-L8 air control pneumatic foot pedal valve
Order code
Symbol
Technical parameter
Model No
| K23R7-L6
| K25R7-L6
| K23R7-L8
| K25R7-L8
|
|
Fluid
| Air
|
Port size
| 06:G1/8”
| 08:G1/4”
|
|
Valve type
| 3/2 way
| 5/2 way
|
|
Pressure range
| 0.05~0.8Mpa
|
Temperature
| -5~50℃
|
Net sectional area
| 10mm²
|
Leakage rate
| ≤50cm²/min
|
Dimension
Feature
.K23R7 aluminum foot pedal valve is designed with direct acting, which is steady and reliable;
.If the duration of direction-change is long, the valves with lock may be used;
.The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact;
.Plastic guard with high strength may be used.
