3 Color Automatic Silk Screen Printing Machine for Bottles Glass Bottle Multicolors Automatic Screen Printer

Product Description

Factory Direct Sale Full Automatic Glass Bottle Screen Printer with CCD Visual Position Specification

1.Model:	LC-CNC310D
2.Printing color:	3color(can print multi color by multi times)
3.Product appearance:	cylinder/flat/oval and other special shape, plastic glass bottles,jars ,cups ,cans
4.Operation:	Full CNC Servo
5.Max Product size	round diameter 100mm, length 310mm
6.Left and right stroke of scraper	355mm
7.The fastest printing speed:	2700-3600 pcs/hr
8.Power requirements:	AC380V 3Phase 50Hz /60Hz
9.Rated power:	host 7.5KW
10.Air pressure requirement:	5~7bar
11.Machine size:	L2400*W2000*H1700 (Length can be customized)

Printing Sample

Product Display

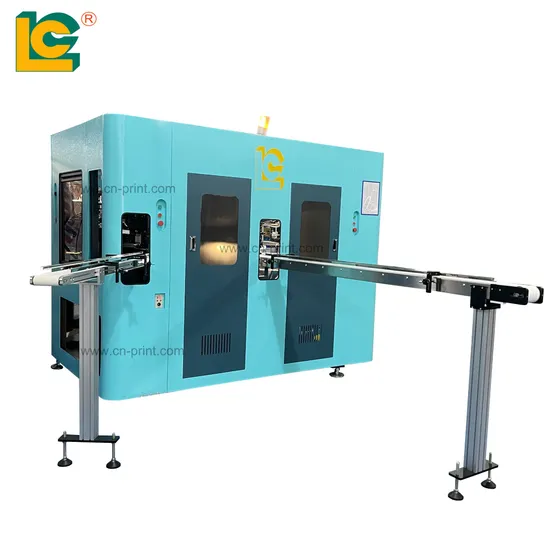

Description: It is a screen printing machine specially developed for plastic bottles and glass bottles. After manually placing the bottles on the feeding conveyor belt, the mechanical gripper transfers the bottles to the printing tooling. At the same time, the CCD camera captures the bottom and body of the bottle and cooperates with the servo motor for precise positioning. Two silk printing stations and two colors are completed at the same time. . Then the robot clamps the finished bottle to the unloading line.The machine has high efficiency, and the round bottle can reach more than 55 per minute, and the square bottle can reach more than 45 per minute. And the overprinting precision is high, the degree of intelligence is high, and the pass rate of product quality is high.The main frame of the machine is welded by high-strength and high-quality steel parts, the circular turntable is designed, the main components are processed by CNC, and the plexiglass protective door is installed, which shows the safety of humanization and operation, and meets European safety standards; the control system , Servo motors, electrical components, and pneumatic components are all made of well-known brands from Germany, Japan, and France to ensure the accuracy and stability of the machine's operation. It is suitable for multi-color silk screen printing of round, square, square with arc, oval, rhombus, special-shaped and other bottle shapes.
