| Machine Specifications | | |
| Item | Specification | Optional |
| Reed Width | Nominal reed width(cm):170,190,210,230,260,280,300,340,360cm | |
| Effective reed:(170~260cm) 0~60cm | |
| from 170 to 260cm Nominal reed width reduce 0~60cm |
| 0~80cm(280cm)0~80cm |
| Width more than 280cm, Nominal reed width reduce 0~80cm |
| Speed | Max 1200 RPM ( actual speed depends on the fabric type) | |
| Voltage | 220V/380V/415V |
| Weaving Range | Spun:Ne100~Ne2.5 | |
| Filament:22dtex~1350dtex | |
| Weft Selection | Two color, four color, six color and continuous expansion function | |
| Power | Positioning and stopping by electromagnetic brake control | |
| Motor drive 2.2KW-5.5KW | Direct drive motor(XINLIAO/SANHE/HUICHUAN/VEICHI,ETC.) |
| Left hand&Right hand operation of control buttons | |

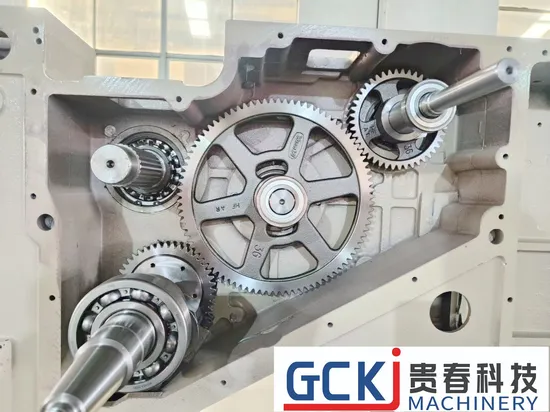

| Inside Gear | TTG/Yuanyi,made in Taiwan,China,ultra-silent, ultra-wear-resistant, ultra-low vibration, high precision | |
| Inside Bearing | German bearing | |
| Weft Insertion | Maximum weft insertion rate: 2280m/min | |
| Combination of main nozzle and auxiliary nozzle | Drafting nozzle |
| Profiled reed | |
| Auxiliary main nozzle | |
| Shedding | Crank connecting rod shedding: 4 pcs heald frame or 6 pcs heald frame | |
| Positive cam shedding:Up to 12 pieces of heald frame | |
| Dobby shedding: up to 16pieces of heald frames | |
| Jacquard shedding | |
| Let Off | Negative loose warp or positive loose warp device | |
| Electronic let off | Double warp beam |
| Diameter of the beam flange:Φ800mm | Φ914mm |
| Φ1000mm |
| Take Up | Electronic take up | |
| | Standard density 25-300 picks/inch | |
| | Maximum roll cloth diameter: Φ 600mm (cam, dobby, jacquard shedding) Φ 520mm (crank shedding) | |
| Beating Up | "U" shaped beating up shaft | |
| Four-link beating-up (narrow width), six-link beating-up (wide width) | |
| Configure rocker shaft middle support | |
| Length Measurement&Weft Storage | Electronic weft feeder | |
| Weft Stand | Floor type 4 barrels (2 nozzles), Floor type 8 barrels (4 nozzles), Floor type 10 barrels (6 nozzle) | |
| Selvage | Planetary gear type Selvage device | |
| Yarn end Treatment | | |
| Discarded take-up 2pcs drum-type |
| Weft Cutting | Mechanical weft cutting device | Electronic weft cutting device |
| Lubrication | Main transmission part oil bath type, manual centralized oil supply | Electric central oil supply |
| Stop Machine Device | Weft yarn: photoelectric weft feeler, double probe | |
| Warp yarn: Electrical contact six-row dropper | |
| Others: selvage yarn, discarded edge yarn and automatic stop when the yarn is broken | |
| Stop reason: show the information on the display, multi-function 4-color light stop display | |
| Automation | Inverter to adjust speed | |
| Electronic Conrol System | Huichuan,Xinliao,Weichi,Jiading,Sanhe,etc. | Or electronic control brand specified by the customer |
