0.5W Zener Diode Bzx55c2V7/Bzv55c2V7

Product Description

ZENER DIODE-BZX55Cxx/BZV55Cxx
1.Datasheet:
2.Products list:

ZENER DIODES
TYPE	Zener Voltage		Test Current	Dynamic Resistance		IZK	Maximum Reverse Current		Temperature Coefficient	Power Dissipation	Package
	VZ@IZT		IZT	Zzt@Izt	Zzt@Izk		IR	@VR		Pd
DIP/SMD	Min	Max	mA	Ω	Ω	mA	μA	V	%/ºC	mW
BZX/BZV 55C 2V4	2.28	2.56	5	85	600	1	50	1	-0.085	500	DO-35 DL-35 MINI MELF
BZX/BZV 55C 2V7	2.5	2.9	5	85	600	1	10	1	-0.080	500
BZX/BZV 55C 3V0	2.8	3.2	5	85	600	1	4	1	-0.075	500
BZX/BZV 55C 3V3	3.1	3.5	5	85	600	1	2	1	-0.070	500
BZX/BZV 55C 3V6	3.4	3.8	5	85	600	1	2	1	-0.065	500
BZX/BZV 55C 3V9	3.7	4.1	5	85	600	1	2	1	-0.060	500
BZX/BZV 55C 4V3	4.0	4.6	5	75	600	1	1	1	±0.055	500
BZX/BZV 55C 4V7	4.4	5.0	5	60	600	1	0.5	1	±0.030	500
BZX/BZV 55C 5V1	4.8	5.4	5	35	550	1	0.1	1	±0.030	500
BZX/BZV 55C 5V6	5.2	6.0	5	25	450	1	0.1	1	+0.038	500
BZX/BZV 55C 6V2	5.8	6.6	5	10	200	1	0.1	2	+0.045	500
BZX/BZV 55C 6V8	6.4	7.2	5	8	150	1	0.1	3	+0.050	500
BZX/BZV 55C 7V5	7.0	7.9	5	7	50	1	0.1	5	+0.058	500
BZX/BZV 55C 8V2	7.7	8.7	5	7	50	1	0.1	6.2	+0.062	500
BZX/BZV 55C 9V1	8.5	9.6	5	10	50	1	0.1	6.8	+0.068	500
BZX/BZV 55C 10	9.4	10.6	5	15	70	1	0.1	7.5	+0.075	500
BZX/BZV 55C 11	10.4	11.6	5	20	70	1	0.1	8.2	+0.076	500
BZX/BZV 55C 12	11.4	12.7	5	20	90	1	0.1	9.1	+0.077	500
BZX/BZV 55C 13	12.4	14.1	5	26	110	1	0.1	10	+0.079	500
BZX/BZV 55C 15	13.8	15.6	5	30	110	1	0.1	11	+0.082	500
BZX/BZV 55C 16	15.3	17.1	5	40	170	1	0.1	12	+0.083	500
BZX/BZV 55C 18	16.8	19.1	5	50	170	1	0.1	13	+0.085	500
BZX/BZV 55C 20	18.8	21.2	5	55	220	1	0.1	15	+0.086	500
BZX/BZV 55C 22	20.8	23.3	5	55	220	1	0.1	16	+0.087	500
BZX/BZV 55C 24	22.8	25.6	5	80	220	1	0.1	18	+0.088	500
BZX/BZV 55C 27	25.1	28.9	5	80	220	1	0.1	20	+0.090	500
BZX/BZV 55C 30	28	32	5	80	220	1	0.1	22	+0.091	500
BZX/BZV 55C 33	31	35	5	80	220	1	0.1	24	+0.092	500
BZX/BZV 55C 36	34	38	5	80	220	1	0.1	27	+0.093	500
BZX/BZV 55C 39	37	41	2.5	90	500	0.5	0.1	30	+0.094	500
BZX/BZV 55C 43	40	46	2.5	90	600	0.5	0.1	33	+0.095	500
BZX/BZV 55C 47	44	50	2.5	110	700	0.5	0.1	36	+0.095	500
BZX/BZV 55C 51	48	54	2.5	125	700	0.5	0.1	37	+0.096	500
BZX/BZV 55C 56	52	60	2.5	135	1000	0.5	0.1	43	+0.096	500
BZX/BZV 55C 62	58	66	2.5	150	1000	0.5	0.1	47	+0.096	500
BZX/BZV 55C 68	64	72	2.5	200	1000	0.5	0.1	51	+0.096	500
BZX/BZV 55C 75	70	80	2.5	250	1500	0.5	0.1	56	+0.096	500
BZX/BZV 55C 82	77	87	2.5	300	2000	0.5	0.1	62	+0.096	500
BZX/BZV 55C 91	85	96	1	450	5000	0.1	0.1	68	+0.096	500
BZX/BZV 55C 100	94	106	1	450	5000	0.1	0.1	75	+0.096	500
BZX/BZV 55C 110	104	116	1	600	5000	0.1	0.1	82	+0.096	500
BZX/BZV 55C 120	114	127	1	800	5000	0.1	0.1	91	+0.096	500
BZX/BZV 55C 130	124	141	1	1000	5000	0.1	0.1	100	+0.096	500
BZX/BZV 55C 150	138	156	1	1200	5000	0.1	0.1	110	+0.096	500
BZX/BZV 55C 160	153	171	1	1500	5000	0.1	0.1	120	+0.096	500
BZX/BZV 55C 180	168	191	1	1800	5000	0.1	0.1	130	+0.096	500
BZX/BZV 55C 188	188	212	1	2000	5000	0.1	0.1	150	+0.096	500
Note:(BZV...)Inducates MINI MELF Package.

3.Reliability Test List:

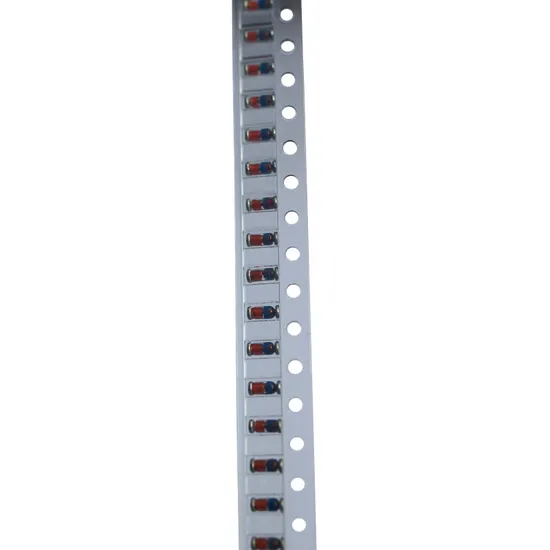

4.Product Picture:

5.Our Fair:
6. FAQ:
1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to reduce your cost.

2. May I have some samples for testing?
Yes, sure. We offer free samples for you and you only need to cover the international freight for samples. when you have 1st order with us, we will deduct the freight from your first order.
3. What about the delivery ?
Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.
4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.

5. What about the shipment terms ?
FOB Shanghai by air;
CFR your city seaport by sea;

We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.
If you have any question or need techical support, please do not hesitate to contact us, we will try our best to serve you.

---
