Span100m Aerial Fiber Optic Cable Factory Price Mini ADSS (ASU) 12hilos G652D Fibra Optica

Product Description

ASU (Aerial Self-supported Uni-tube) Mini ADSS 2-24 Core Span80/100 Fiber Optic Cable
The 2-24 fibers are positioned in a loose tube made of PBT filled with gel;
The tube and 2 FRP are SZ stranded;
The cable core is filled with water blocking yarn;
PE or AT outer jacket is extruded;
One ripcord is applied in the jacket for easy tearing;
Features:
• All dielectric loose tube structure
• Resistant to electromagnetic interference
• Small diameter and light weight
• cost-effective, simplified installation and maintenance
Application:
Self-supporting Aerial Installation, outdoor use
Product Parameters

Fiber Counts	1-12				24
Span	80 M		120M		80 M		120M
Cable Diameter (mm)	6.6		7.6		7.5		8.2
Cable Weight (Kg/km)	45		62		52		65
Tensile Strength (N)	1500N		2000N		1500N		2000N
Crush Resistance (N/100mm)	2000N
Min. Bending Radius (mm)	Static/Dynamic: 10D/20D
Temperature (ºC)	Storage /Operation: -40ºC~+70ºC

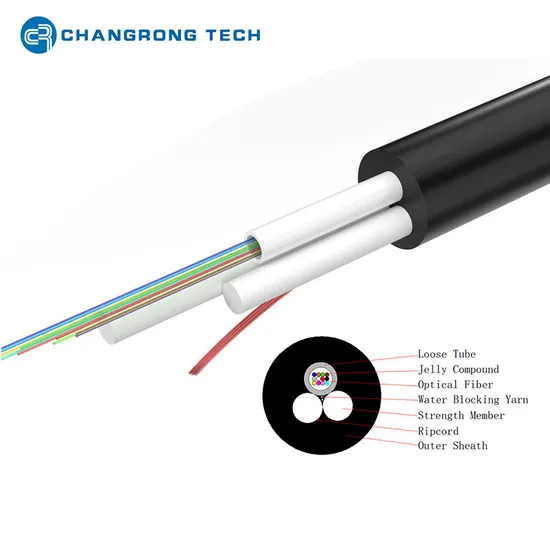

Cable Structure Design
Certifications
ISO 9001, ISO14001, ISO45001 Certified FactoryOwn laboratory has passed the CNAS Certification
Our Advantages
50 sets of Optical Cable Testing Equipment: Packing & Shipping
Drum Packing: Shipping:
Company Profile
Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, with total area of 230,000 Sqm, is one of the professional manufacturers of optical fibers and cables. ISO9001, ISO14001, ISO45001 certified.
Equipped with 9 cutting-edge fiber drawing towers and 18 production lines (for both fiber & cable), an annual production capacity of 15 million Fiber Kilometers, own lab certified by CNAS with advanced equipment imported from France, Japan and United States, Anhui Changrong is devoted to achieving the best solutions for customers.
Catalogue
Optical Fiber: G652D, G657A1, G657A2
Air Blown Micro duct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A, GYFTC8Y, GYFTC8S
Direct Burial Installation Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS, GYXTC8S
FTTH Drop Cable: GJXH, GJXFH, GJYXCH, GJYXFCH Welcome to contact for more information!
FAQ

---
