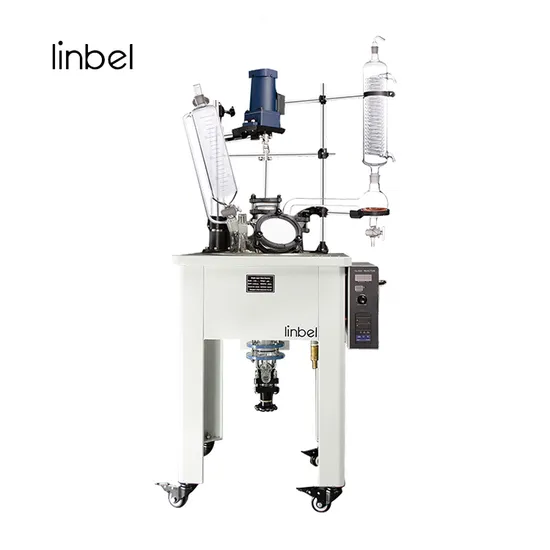

Large Single Layer Vacuum Glass Reactor for Chemical Laboratory

Product Description

Model	F-10L	F-20L	F-30L	F-50L	F-80L	F-100L
Stirrer speed	0-600rpm
Bath power	3KW			6KW	6/9KW
Temp. Range	0-200ºC ± 0.2ºC
PTFE Combined sealing	12*32*10				15*32*10
Controller	Speed digital display / Temperature display
Solid inlet port	φ125mm				φ80mm
Liquid inlet port	34#
Temperature tube	24#200mm	24#230mm	24#300mm	24#350mm	29#800mm	29#480mm
Distillation device	500ml				1000ml
Collection flask	5-50L optional
Condenser	Vertical double serpentine condenser
Constant pressure dorp funnel	34#1000ml		34#2000ml
Discharge valve	370mm	480mm	600mm	600mm	600mm	650mm
Bath drain	Optional
Cooling coil	Optional
Size(mm)	640*560*1880	690*610*2080	750*670*2250	780*710*2250	850*760*2330	850*760*2500
Voltage	220V/50Hz				220V/50Hz / 380V/50Hz
EX-Proof motor	Optional
EX-Proof controller	Optional
Cooling coil	Copper cooling coil is optional.
SUS Frame, no heating single layer glass reactor is optional.

FAQ:
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.

---
