9000 12000 18000 24000 BTU Solar Air Conditioners off Brid Energy Saving Hybrid Air Conditioners Connect with Solar panel and Battery

Product Description

Product Description Sacon inverter Hybrid Solar Air Conditioner is contains with outdoor indoor unit and PV.
The electricity generated by photovoltaic modules can directly drive The air conditioner is running, and the power shortage is supplied by the city power supply. charge.
Customers can enjoy cool air conditioning in the summer warm in the winter and spend at least 80% less during the day.
1P inverter solar air conditioner test for warming:
1-3P inverter solar air conditioner test for cooling:
*For installation:
1. Install the unit on a solid surface such as concrete material, and the bearing surface or mounting bracket must meet the strength requirements;
2. Secure the outdoor unit to the mounting bracket by bolts and nuts, and keep it level;
3. If it is installed on the wall or roof, the bracket must be firmly fixed to prevent damage caused by earthquakes or strong winds;
4. Install four positioning foot bolts with a diameter of 10mm based on the exterior diagram.
5. For details, see the installation manual in the packing case.

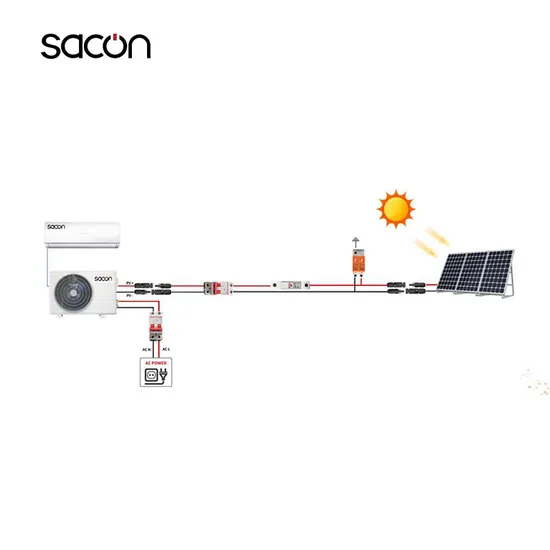

*Solar Air Conditioner Running Mode .
*Product Parameter

Solar Air Conditioner System
Product Specification Sheet			MAC-9HA1	MAC-12HA1	MAC-18HA1	MAC-24HA1
Power supply source		AC	220-240V 50/60Hz
		DC	100-350V MAX.12A
Rated Capacity	Cooling	W	2500	3500	5000	7000
	Heating		2600	3600	5100	7200
Rated Power Consumption	Cooling	W	735	1030	1520	2100
	Heating		670	980	1550	2180
Rated Running Current Consumption	Cooling	A	3.2	4.7	6.9	9.2
	Heating	A	2.9	4.5	7	9.5
Max. Input Power		W	1450	1870	2860	3800
Max. Input Current		A	6.6	8.5	13	17.2
SEER Cooling		W/W	6.6	6.6	6.6	6.6
SCOP Heating		W/W	4.6	4.6	4	4
Refrigerant		-	R32	R32	R32	R32
Refrigerant Charged		g	900	900	920	1260
Air Flow Volume		m³/h	650	650	900	1200
Noise level (Indoor)		dB(A)	41	42	45	48
Noise level(Outdoor)		dB(A)	50	50	52	56
Compressor Parameter	Drive mode	AC/DC	DC	DC	DC	DC
	Capacity	W	3405±5%	3405±5%	5780±5%	7740±5%
	Input	W	860±5%	860±5%	1320±5%	2065±5%
	Rated current	A	5.8±5%	5.8±5%	6.0±5%	9.4±5%
Outdoor Dimension	Net Dimension(W*D*H)	mm	795*290*555	795*290*555	795*290*555	860*304*733
	Packing Dimension(W*D*H)	mm	910*400*630	860*600*360	915*605*395	1040*780*450
Indoor Dimension	Net Dimension(W*D*H)	mm	895*203*300	895*203*300	1000*240*310	1130*245*320
	Packing Dimension(W*D*H)	mm	965*275*370	980*380*315	1040*395*315	1165*395*315
Indoor unit weight (Gross/Net )		Kg	11/9	11/9	14.5/12.5	17.5/15.5
Outdoor unit weight (Gross/Net )		Kg	38.5/34.5	38.5/34.5	39/35	55/51

Pv Module (Advised Specifications )
Product Specification Sheet			MP550S-C72/Vmh
Pmax		W	550
Voc		V	49.88
Isc		A	14.01
Vmp		V	42.05
Imp		A	13.08
Suggested quantity of PV modules		PCS	2	3	4	6
PV MAX power		KW	1.1	1.65	2.2	3.3

Company ProfileSacon HVAC,a number of Solareast,which is a prominent player in the energy sector, operates five state-of-the-art production bases across China.Among them, located in Shunde, Guangdong, specializes in the production of air source heat pumps and air conditioner.
Spanning over 100,000 square meters, we have invested USD 2 million in the construction of advanced testing laboratories. These cutting-edge facilities enable us to rigorously test machines up to 300kW, even in the harshest cold climates, with temperatures as low as -30°C.
Moreover, Solareast Heat Pump Ltd. has received prestigious certifications such as ISO9001, ISO14001,ISO18001, and our products have gained approval from
BAFA,CE, Rohs, MCS, KEYMARK, CB, SAA, ErP, among others.
With more than a decade of experience in air source heat pump technology, Solareast Heat Pump Ltd. stands at the forefront of providing sustainable and highly efficient thermal energy solutions.
FAQQ1 Are you a manufacturer?
Answer: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply.
Q2: What is your main product?
Answer: Our main products include DC inverter heat pump, air source heat pump water heaters, all in one heat pump, swimming pool heat pump, ,EVI heat pump and commercial in low temp. areas.
Q3: How do I place an order?
Answer: Please send us an inquiry or contact us through online services; After receiving your inquiry, we will reply to you Catalogs, quotations, and other information you need. Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European/North American/Australian standard heat pump under your brand according to your special needs. Q5: Can I apply to become your heat pump distributor?
Answer: We are currently looking for more heat pump distributors worldwide, who can distribute our heat pump products in local countries/regions. Q6: I need to buy in large quantities. Can you provide a sample service?Answer:Yes, we can provide sample service, and we have engineers to help you solve installation problems .

---
