Product Description
Product Description

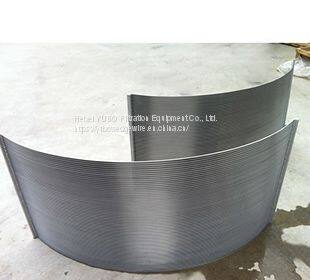

The stainless steel sieve bend screen(DSM Screen) for wastewater treatment has a greater screening capacity than a flat screen due to forces exerted as material flows against the curved surface. This Wedge Wire screen sieve bends a curved static screen plate mounted in a frame with the screen openings perpendicular to the flow.
The DSM's unique screen plate is made of wedge bars forming a bowed surface with horizontal slots between the bars.
Features
1. Low Headroom - only 1.1 meters (44") tall for the 900 mm arc length unit.
2. Energy Efficient - operates with no moving parts and with no energy input.
3. Space Efficient - treats up to 122 liters per second per square meter of floor space.
4. Quiet Operation - no moving parts means no mechanical or electrical vibrations.
5. Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
6. Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
7. Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
Application
They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment, etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in the Starch industry.
