High Precision Heavy Duty Metal Slant Bed CNC Lathe T65

Product Description

Product Parameters

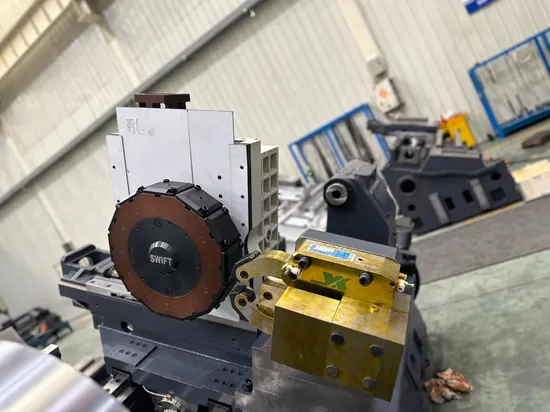

The T65 slant-bed CNC lathe features a one-piece cast bed and slant guide rails for excellent rigidity and vibration absorption,ensuring high-precision cutting.It uses an AC servo motor with a V-belt direct drive spindle for low noise.The spindle has precision high-speed bearings and a box-type support for high-speed operation.Equipped with a multi-position or powered turret, it can machine complex parts like cylinders,threads,slots,and worms,offering linear and arc interpolation for mass production.An optional high-rigidity hydraulic servo turret provides greater reliability and repeatability.

ITEM		UNIT	T65
General Rules	CNC system		GSK
	Physical dimension	mm	3200*1800*220
	Total weight of machine tool	kg	4700
The scope of work	Maximum rotation diameter on the bed	mm	φ540
	Maximum rotation diameter on the pallet	mm	φ340
	Maximum processing length	mm	550
	Maximum bar diameter	mm	67
	X-axis maximum travel	mm	320
	Z axis maximum travel	mm	600
Spindle	Spindle shift mode		Continuously variable speed
	Spindle speed	rpm	20-2200
	Spindle end		A2-8
	Spindle through hole diameter	mm	φ82
Working accuracy	Servo main motor power	kw	11
	X-axis servo motor	Nm	15
	Z-axis servo motor	Nm	11.4
	X-axis fast forward speed	m/min	18
	Z-axis fast forward speed	m/min	20
Tool holder	Tool holder form		Hydraulic servo tool holder
	Number of tool positions		8
	Cutter size	mm	25/32,40
Tailstock	Tailstock sleeve diameter/stroke	mm	100/120
	Tailstock type		Hydraulic
	Tailstock quill taper		MT5#
Chuck	Chuck form		Hydraulic solid
	Chuck diameter	inch	10

---
