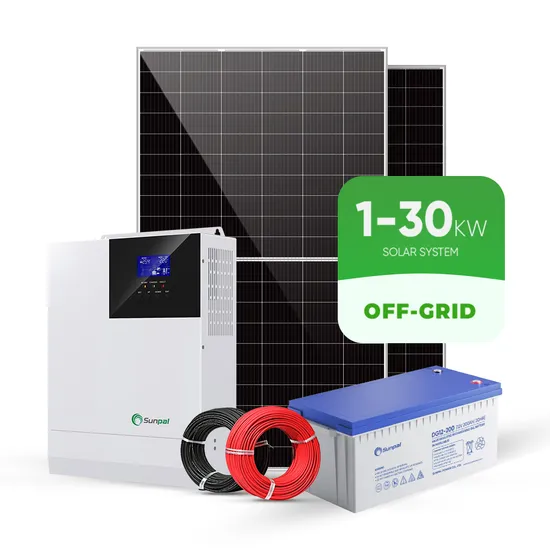

Sunpal Solar Home System Complete 3Kw 4Kw 5Kw Off Grid Solar Power System Kit

Product Description

Product Description
Warranty
How it worksWhat's Included

Model	SP-3KW-OFF	SP-5KW-OFF	SP-10KW-OFF
Half Cut Mono 550W Solar Panel	6 Pieces	8 Pieces	20 Pieces
PV Combiner Box	3 Input 1 output 1 Piece	4 Input 1 output 1 Piece	4 Input 1 output 2 Pieces
Off-Grid Hybrid Inverter	HF4830S60	HF4850S80	HFP4850S80/2PCS
GEL Battery	12V 200AH/4PCS	12V 200AH/4PCS	12V 200AH/8PCS
DC Cable 4mm2	100 meter	200 meter	400 meter
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool

Model	SP-15KW-OFF	SP-20KW-OFF	SP-30KW-OFF
Half Cut Mono 550W Solar Panel	24 Pieces	32 Pieces	48 Pieces
PV Combiner Box	4 Input 1 output 3 Pieces	4 Input 1 output 4 Pieces	4 Input 1 output 5 Pieces
Off-Grid Hybrid Inverter	HFP4850S80/3PCS	HFP4850S80/4PCS	HFP4850S80/6PCS
GEL Battery	12V 200AH/12PCS	12V 200AH/16PCS	12V 200AH/20PCS
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool

System ComponentsHalf Cut Mono 550W Solar PanelPeak Power Watts: 550W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm Weight:26.9 kgAll-in-one solar charger inverterAll-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave
output.
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.
Advanced MPPT technology with an efficiency of 99.9%.Monitoring SystemOpen station supports one-click installation and registration Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliabilityAll-in-one solar charger inverterAll-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave
output.
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.
Advanced MPPT technology with an efficiency of 99.9%.PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs OptionalPV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs OptionalDC & AC Disconnect SwitchIP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20APV ToolsWire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly ToolPV Combiner Box IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
Company Profile
Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels.Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation for quality. With over 10 years of development, Sunpal now has a factory area covering 150,000 square meters, with 600 experienced employees.Product packaging
Sunpal Project Case
Our Factory

---
