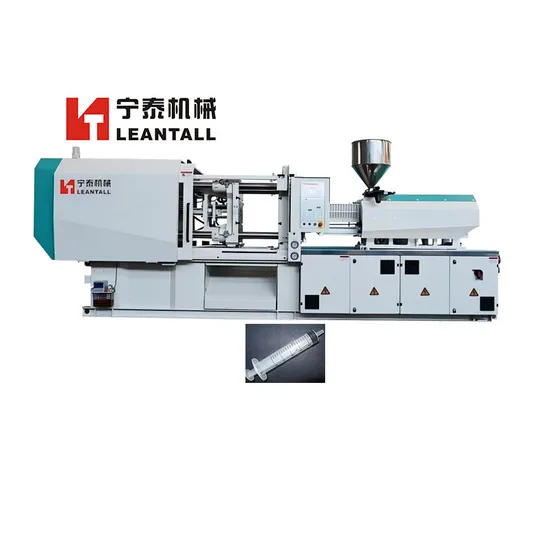

Nt500 Leantall Plastic Injection Molding Machine with Servo Motor Driven Preform for Medical Syringe and Others in China

Product Description

Product Parameters

Part	Name	Unit	NT500
Injection Unit	SCREW DIAMETER	mm	70	75	80
	SCREW L/D RATIO	L/D	21.4	20	19
	INJECTION STROKE	mm	390	390	390
	NJECTION SPEED	Mm/sec	97	97	97
	SHOT VOLUME(THEORETICAL)	CM3	1501	1723	1960
	INJECTION WEIGHT(PS)	g	1366	1568	1784
	INJECTION PRESSURE	Mpa	194	169	148
	INJECTION RATE	cm³/sec	373	428	487
	SCREW SPEED	rpm	170
Clamping Unit	CLAMP FORCE	Kn	5000
	OPEN STROKE	mm	810
	SPACE BETWEEN TIE BARS	mm×mm	830X780
	MAX.MOULD HEIGHT	mm	820
	MIN.MOULD HEIGHT	mm	250
	EJECTOR STROKE	mm	200
	EJECTOR FORCE	Kn	110
	EJECTOR NUMBER	N	13
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	55
	HEATING POWER	Kw	29.5
	MACHINE DIMENSION(L*W*H)	m×m×m	7.9*1.95*2.4
	MACHINE WEIGHT(ESTIMATE)	T	18

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
