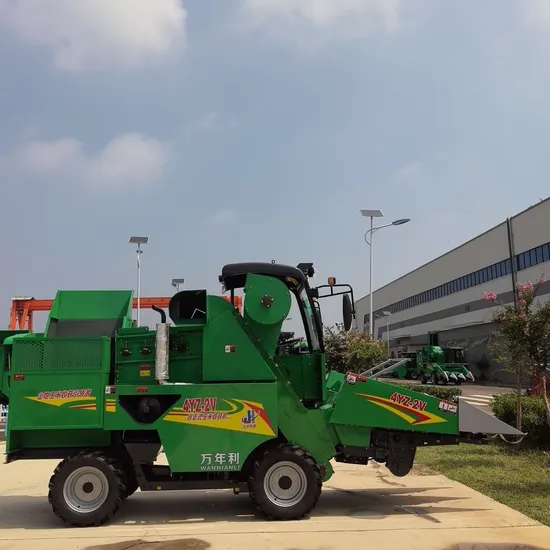

Factory Outlet Corn Cobmine Harvester High Satisfaction Corn Harvester with Factory Direct Supply Agricultural-Machinery 4WD

Product Description

Product Description
1.With 50 HP engine, fuel efficient and durable, powerful.
2.Increase the granary, reduce the number and time of unloading grain.
3.Install anti-entanglement plate to prevent debris from winding bearings.
4.Equipped with plate cutting table, optional combination cutting table tip. The cutting table can be harvested close to the ground.
5.The outside Angle is adjustable.It can realize the harvest of both row and non-row and lodging corn, and has a wide range of operations
6. Equipped with 4WD type, It not only ensures the power and passability, but also takes into account the fuel economy.
7.The front axle and gearbox are made by ourselves,many companies purchased it from our factory.

Product feature
1. strong power,flexible and efficient
With 50 horsepower engine, full of power; Short wheelbase design for front and rear wheels,Small turning radius,flexible steering, high operating efficiency
2. Harvest on the slope, handle it well
Four-wheel drive, short body, low center of gravity.The slope harvest is safer and more passable.
3. Stable, reliable and durable
The chassis is made of high-strength materials, Enhanced travel gearbox for higher reliability.
4. Easy to operate and comfortable to drive
Optimized control mechanism,steering wheel Angle is adjustable,Extended seat, driving experience is more comfortable.
Product Parameter(2Rows to 3Rows)

No	Model	unit	4 YZ - 2 V	4 YZ- 2 (G 4 )	4 YZ- 3 WF/3WA/3WQ	4 YZ- 3 WH
1	Number of rows	pcs	2	2	3	3
2	Power	KW/HP	36.8KW/50HP	55.2KW/75HP	110.3KW/150HP	110.3KW/150HP
3	Dimension	mm	5400* 1750*2820	5560* 1865*2650	6750*2740*3030	6750*2740*3030
4	Row width	mm	600	600	600	630
5	Driving model	/	4*4	4*4	4*4	4*4
6	Tyre size(F/R)	/	F:6.0-16 R:6.0-16	F:9.5- 16 R:6.0- 14	F:11.2-20 R:10.0/75- 15.3	F:11.2-20 R:10.0/75- 15.3
7	video surveillance	/	/	Y	Y	Y
8	Axle base	mm	2050	2050	2500	2500
9	Wheel base(F/R)	mm	1210/1180	1200/1160	1820/1800	1820/1800
10	Transmission type	/	Mechnical+HST	Mechnical+HST	Mechnical+HST	Mechnical+HST

Product Parameter(4Rows )

No	Model	unit	4 YZ- 4 SH	4 YZ- 4 SJ	4 YZ- 4 SF	4 YZ - 4 SL
1	Number of rows	pcs	4	4	4	4
2	Power	KW/HP	118KW/160HP	118KW/160HP	118KW/160HP	118KW/160HP
3	Dimension	mm	6790*2990*3030	6790*2880*3030	6750*2740*3030	6790*2700*3030
4	Row width	mm	630	600	520	560
5	Driving model	/	4*4	4*4	4*4	4*4
6	Tyre size(F/R)	/	F:11.2-20 R:10.0/75- 15.3	F:11.2-20 R:10.0/75- 15.3	F:11.2-20 R:10.0/75- 15.3	F:11.2-20 R:10.0/75- 15.3
7	video surveillance	/	Y	Y	Y	Y
8	Axle base	mm	2500	2500	2500	2500
9	Wheel base(F/R)	mm	1820/1800	1820/1800	1820/1800	1820/1800
10	Transmission type	/	Mechnical+HST	Mechnical+HST	Mechnical+HST	Mechnical+HST

Product Parameter(5Rows to 6Rows)

No	Model	unit	4 YZ - 5 H	4 YZ - 5 J	4 YZ - 6S
1	Number of rows	pcs	5	5	6
2	Power	KW/HP	129KW/175HP	129KW/175HP	118KW/160HP
3	Dimension	mm	7200*3370*3280	7250*3245*3260	6940*2740*3030
4	Row width	mm	630	600	300,300,365,300,300
5	Driving model	/	4*4	4*4	4*4
6	Tyre size(F/R)	/	F:16/70-20 R:16/70-20	F:16/70-20 R:16/70-20	F:11.2-20 R:10.0/75- 15.3
7	video surveillance	/	Y	Y	Y
8	Axle base	mm	2790	2790	2500
9	Wheel base(F/R)	mm	1950/1950	1950/1950	1820/1800
10	Transmission type	/	Mechnical+HST	Mechnical+HST	Mechnical+HST

Company Profile
Productive process
Exhibition
Packaging & Shipping
After sales service 24-hour remote on-line service We owns an extraordinary service team. We're realizing the localized overseas service, which covers digitalized service&training methods, 24-hour remote on-line service and serve our customers seamlessly.
Main products
FAQ Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Shanxian County,Heze City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2:We can provide technical support and online training.
Q3:How about your price?
A3:We sell every machine at a low pirce for the same quality, we leave the maximum profit to customers.
Q4:Can you provide spare parts for free?
A4:Of course
Q5:It can be customized?
A5:Of course,you only need to provide customized requirements
Q6:Can we have some samples?
A6:Of course. We understand the importance of testing some samples before placing an order.
Q7:What is the MOQ?
A7:Normally the MOQ is one set.There are some exceptions to this requirement because of the type of machines.
Q8:What's the payment terms?
A8:For the samples, 100% will be paid before the start of production. For normally orders, at least 30% deposit +70% balance (balance payment before shipment)
Q9:What is your delivery time?
A9:Normally within 15days,if it is high season and the order is very big,it needs 30days.

---
